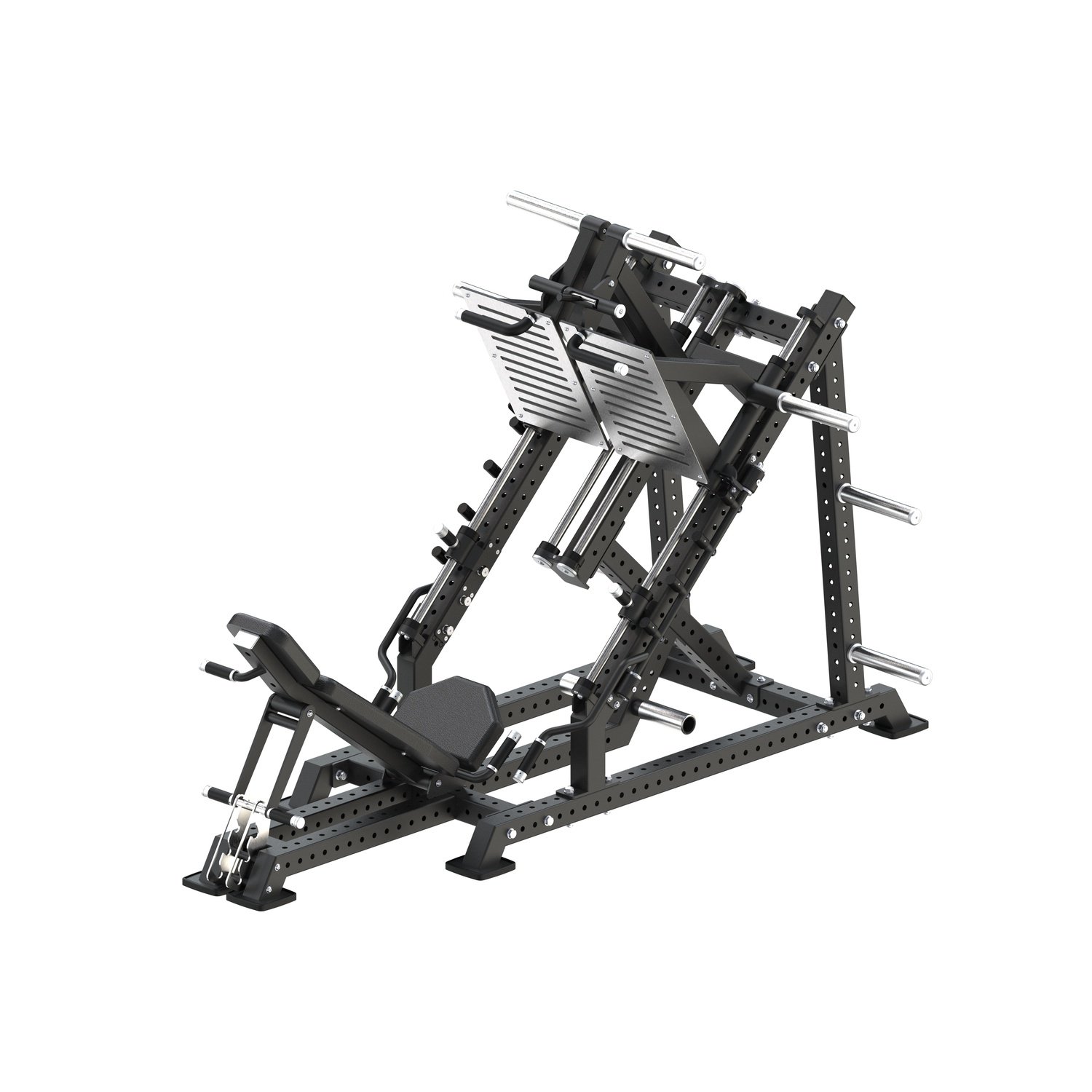

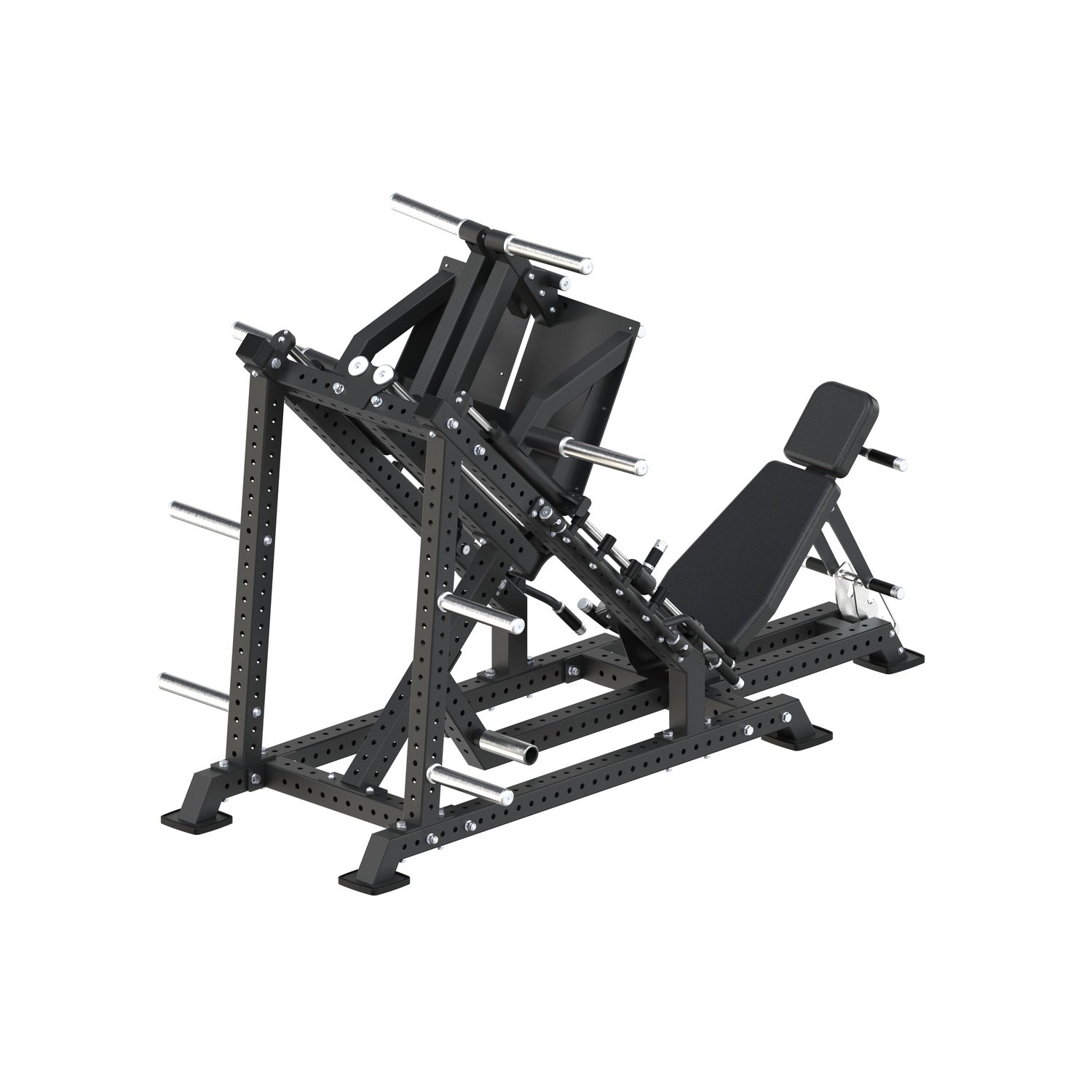

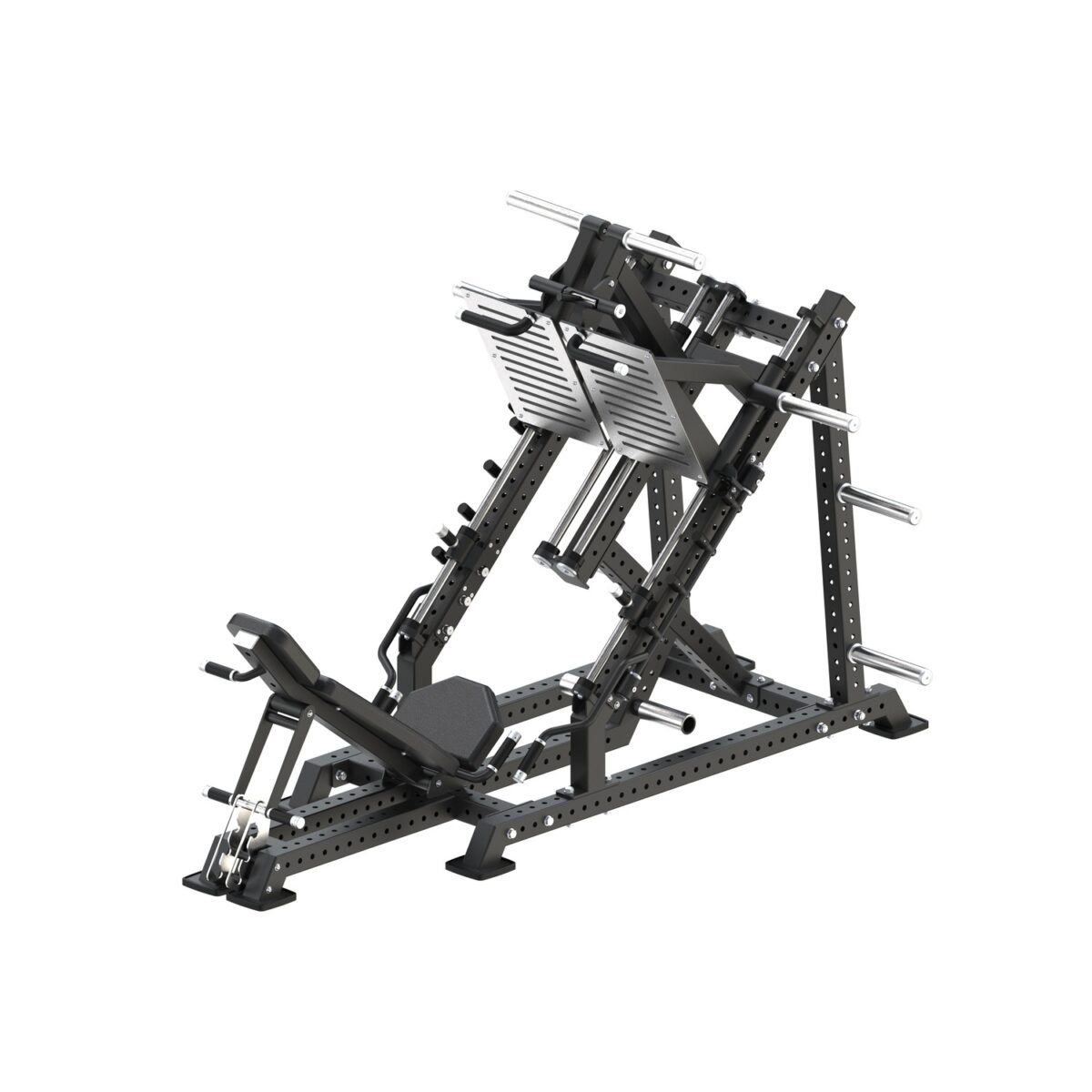

Gorilla Iso Linear 45° Plate Loaded Leg Press

Key Highlights:

• True unilateral and bilateral operation
• Custom 30 mm solid-steel coupling latch
• Precision linear-bearing movement
• 35 mm hardened and hard-chromed guide rods
• 500 kg maximum plate-loading capacity
• 250 kg maximum load per side
• Approximately 40 kg starting resistance
• Four-position adjustable backrest
• Three starting and safety positions
• Independent footplates with stainless-steel tread surfaces
• Four loading horns and four storage horns
• Heavy-duty 75 × 75 mm, 11-gauge Gorilla frame
• Suitable for leg pressing and calf raises

Features:

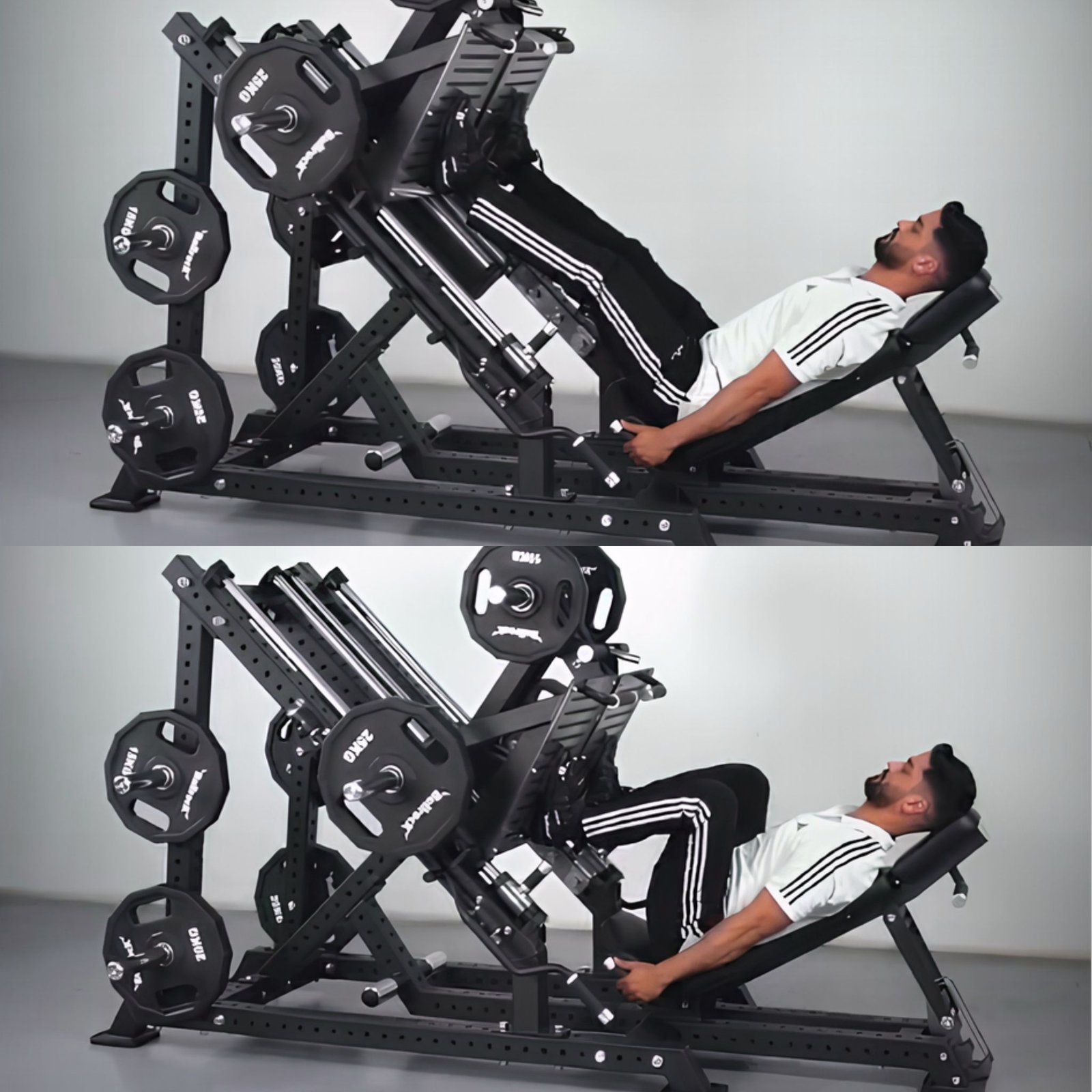

1. True Unilateral and Bilateral Pressing

Independent left and right carriages support single-leg training and help correct strength imbalances. Both sides can also be connected for synchronized bilateral pressing.

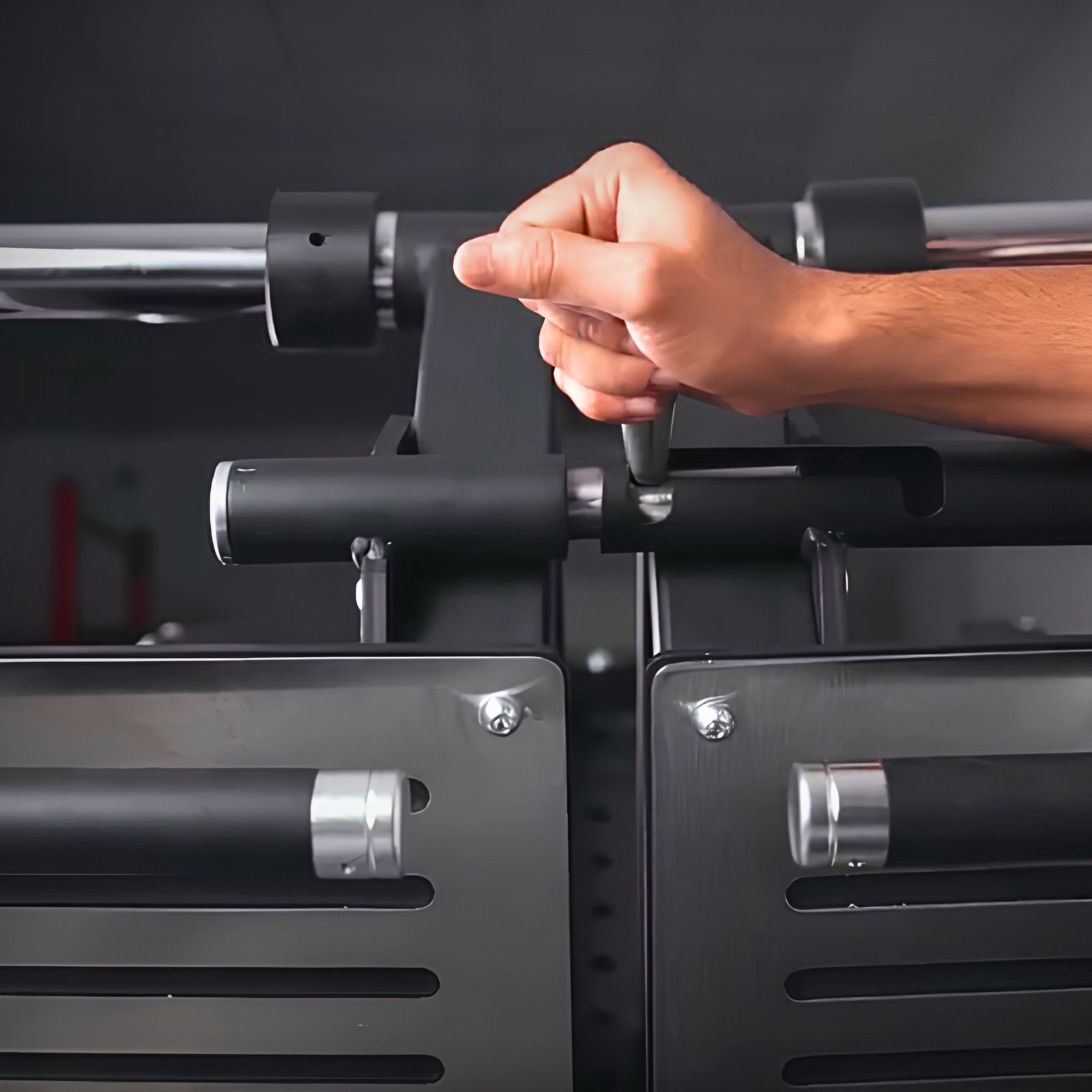

2. Solid-Steel Coupling Latch

A custom 30 mm solid-steel sliding latch allows quick switching between unilateral and bilateral operation without tools or complicated adjustments.

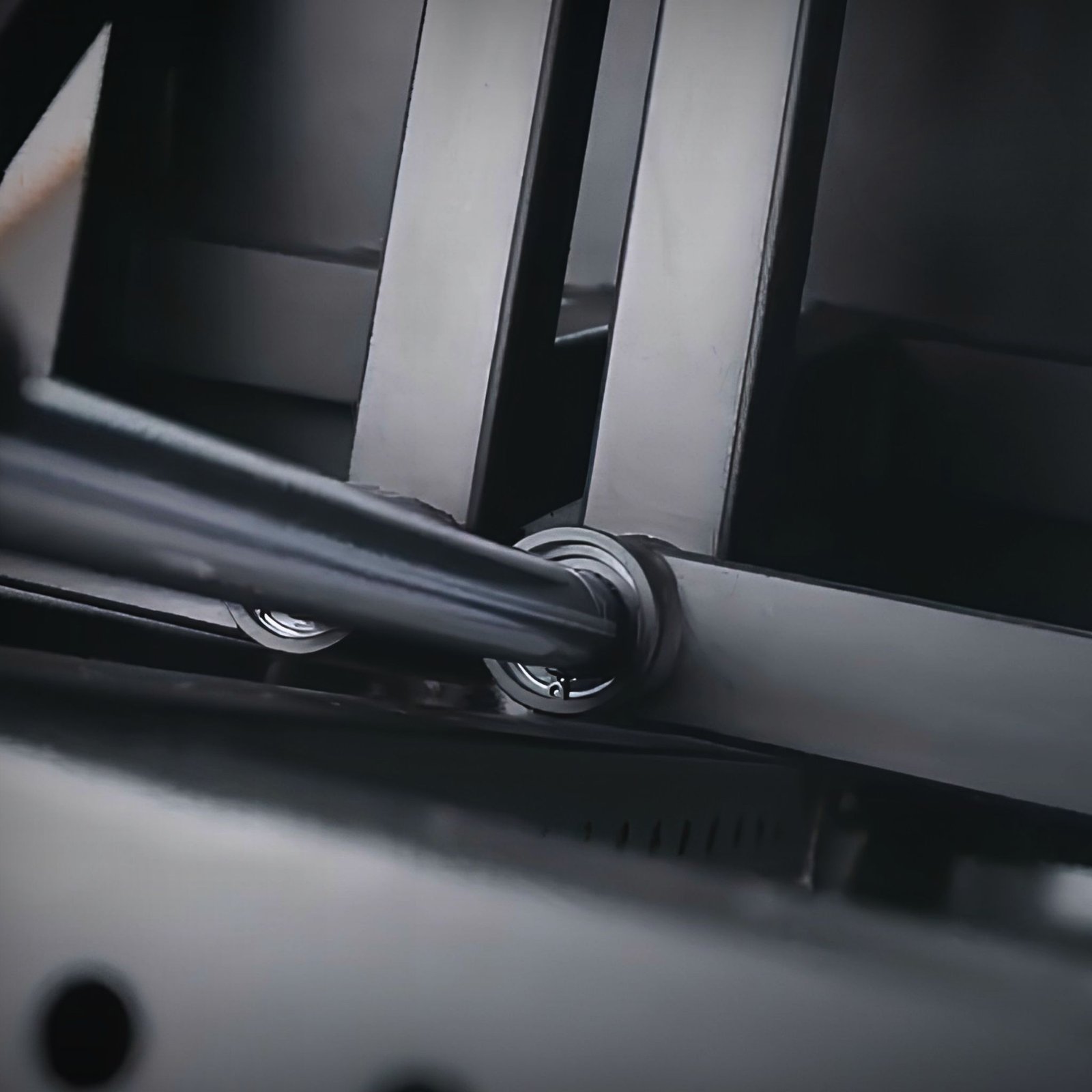

3. Precision Linear-Bearing System

Precision linear bearings provide smooth, controlled and stable carriage movement, delivering the classic linear leg press feel preferred by experienced users.

4. Heavy-Duty Chrome Guide Rods

Each carriage travels on 35 mm solid, hardened and hard-chromed guide rods for dependable alignment, durability and smooth performance under heavy loads.

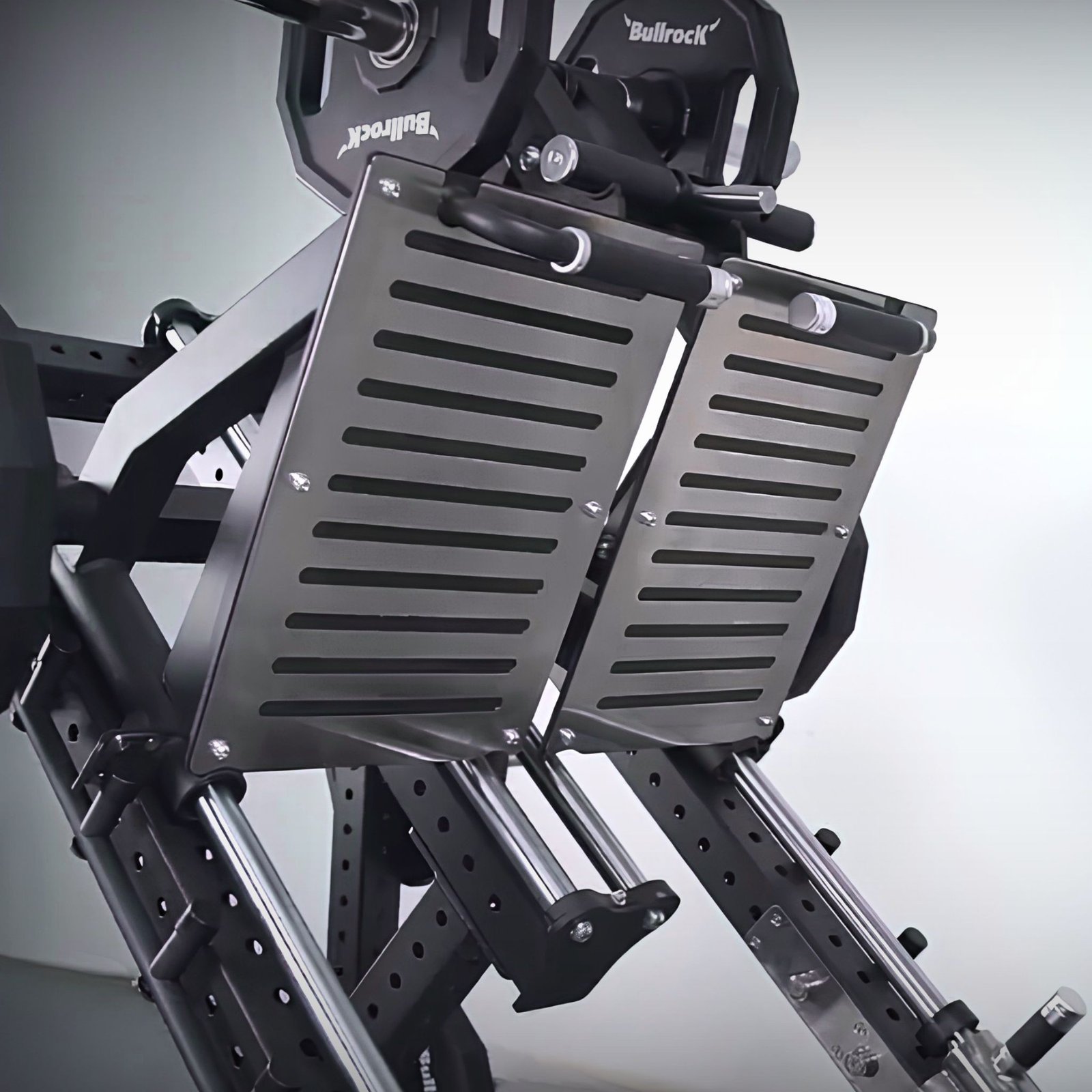

5. Independent Footplates

Two independent footplates measure 380 × 540 mm each and feature laser-cut stainless-steel tread surfaces for durable traction and easy maintenance. Together, they create a combined pressing area of approximately 760 × 540 mm.

6. Multiple Foot Placement Options

The spacious footplates support narrow, wide, high and low foot positions for varied emphasis on the quadriceps, glutes, hamstrings and adductors.

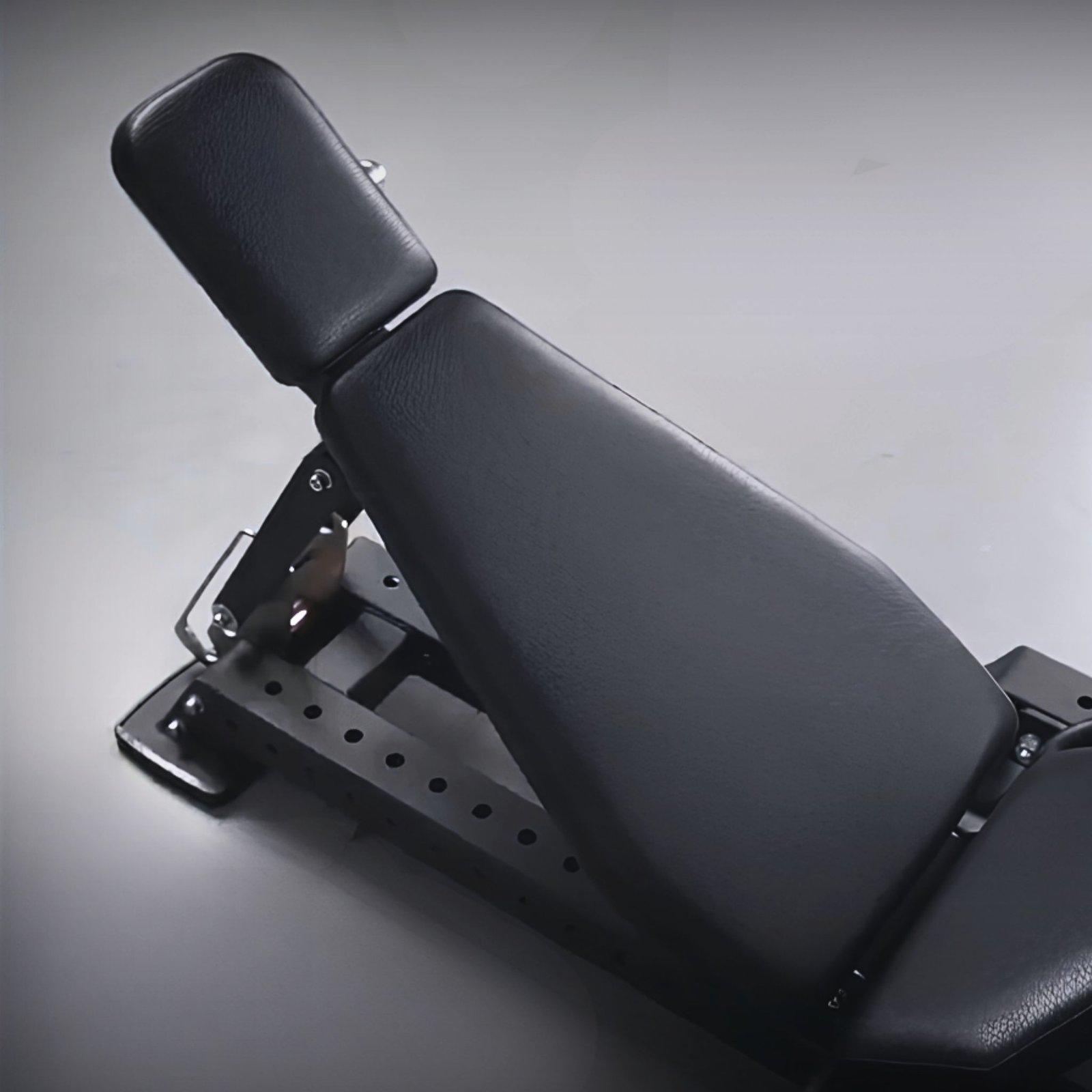

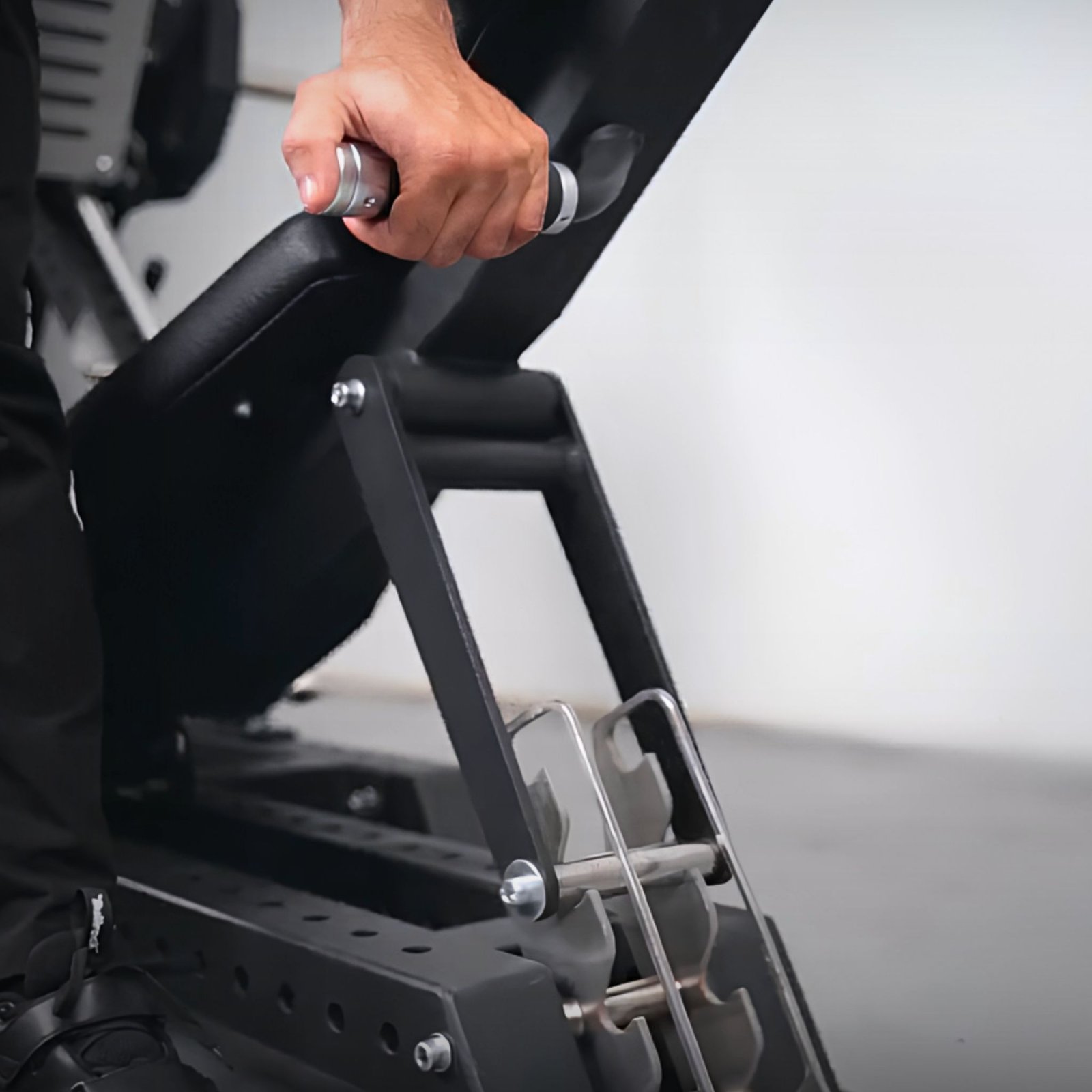

7. Four-Position Adjustable Backrest

A durable ladder-style mechanism provides four backrest angles, allowing users to adjust hip position, pressing depth and overall setup.

8. Three Starting and Safety Positions

Three selectable positions accommodate different user heights, mobility levels and preferred ranges of motion during heavy pressing.

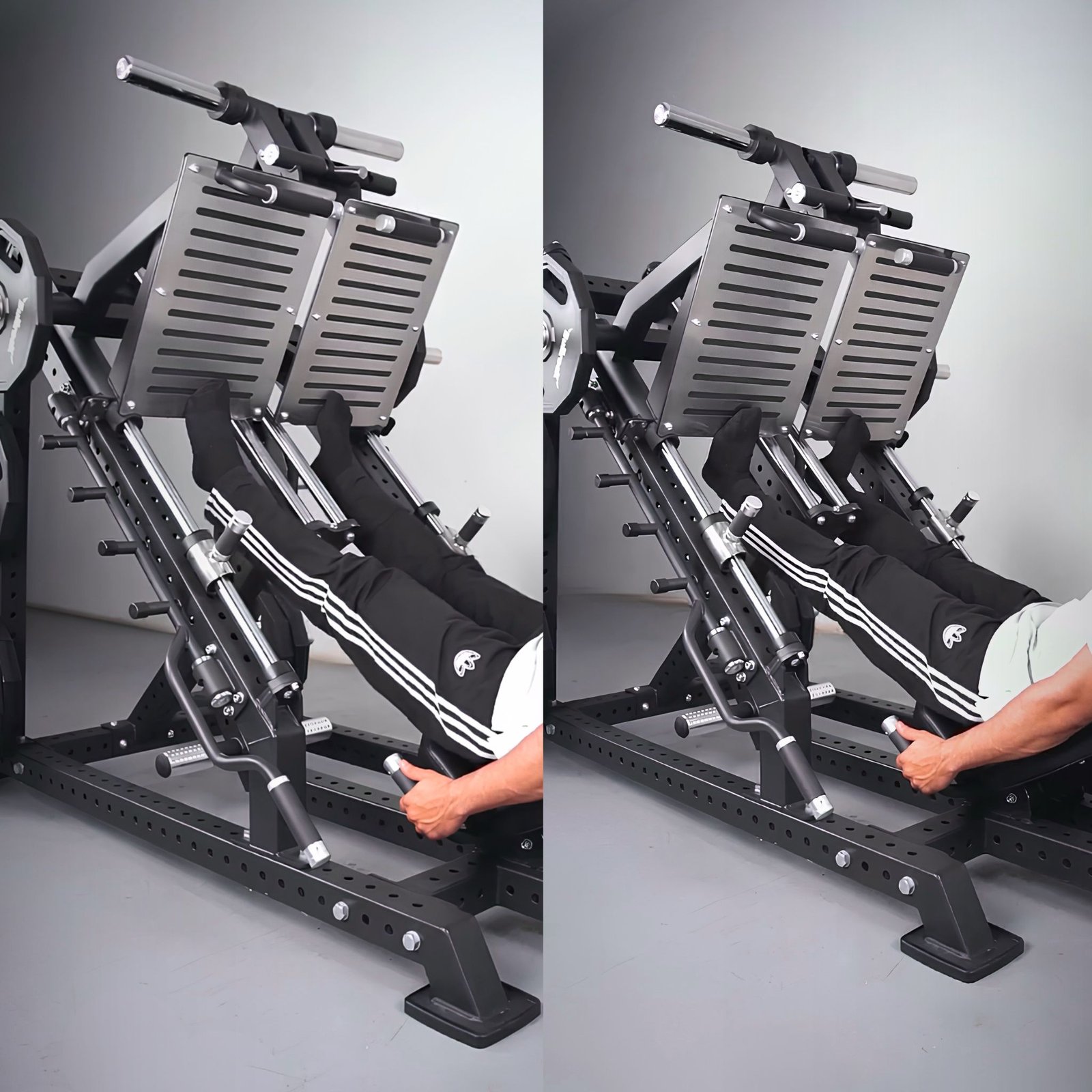

9. Easy Lift-Off Safety System

Convenient release handles allow users to lift the carriage from the safety stops and return it securely after completing the set.

10. Heavy-Duty Gorilla Frame

Built with 75 × 75 mm, 11-gauge steel tubing, 17 mm holes and 2-inch spacing for excellent rigidity and commercial-grade stability.

11. Electrostatic Powder-Coated Finish

The steel frame features an electrostatic powder-coated finish for improved durability, corrosion resistance and a premium commercial appearance.

12. 500 kg Maximum Loading Capacity

The machine supports up to 250 kg per side, providing a combined maximum plate-loading capacity of 500 kg.

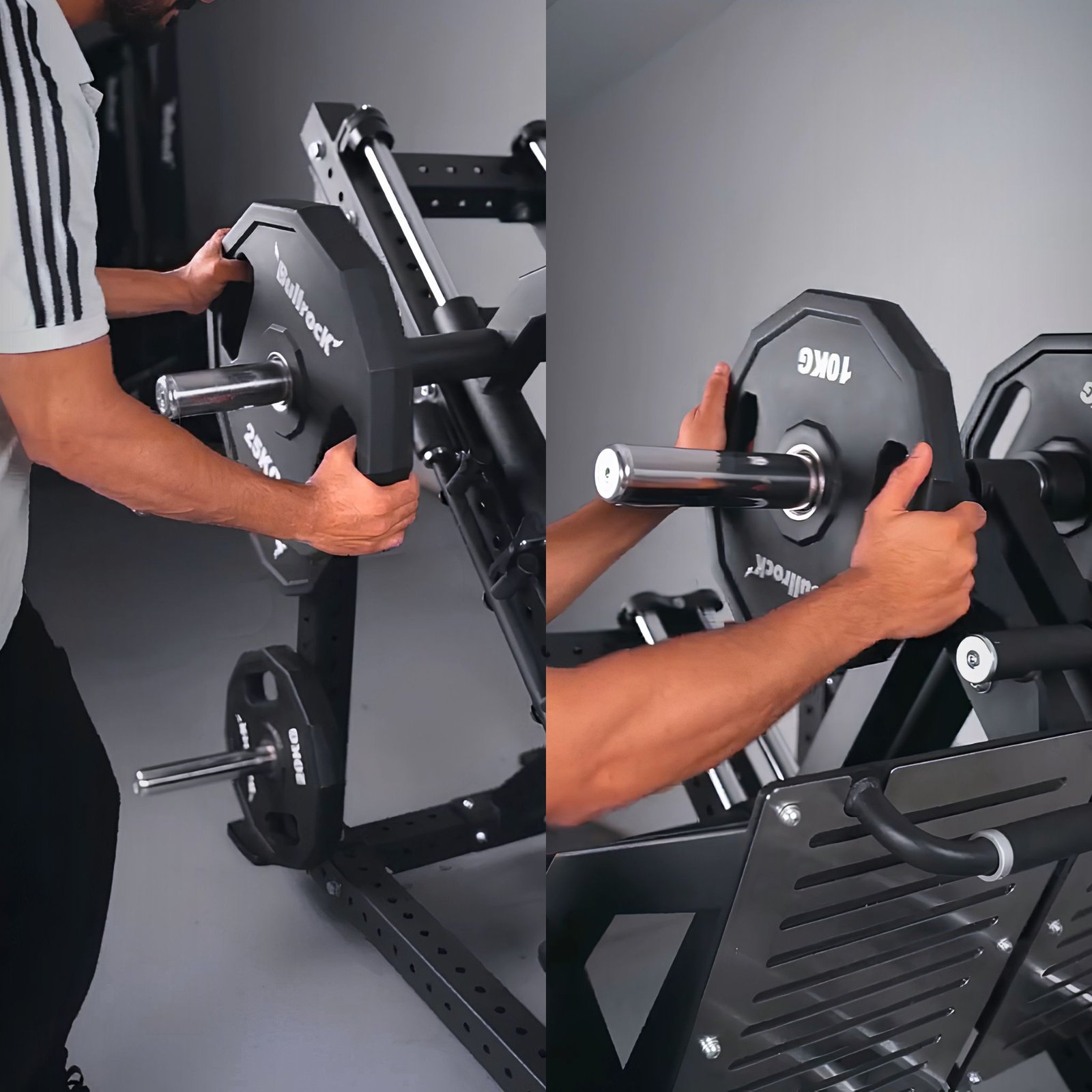

13. Eight Stainless-Steel Plate Horns

Four loading horns and four storage horns provide convenient plate handling. Each stainless-steel horn offers 290 mm of length.

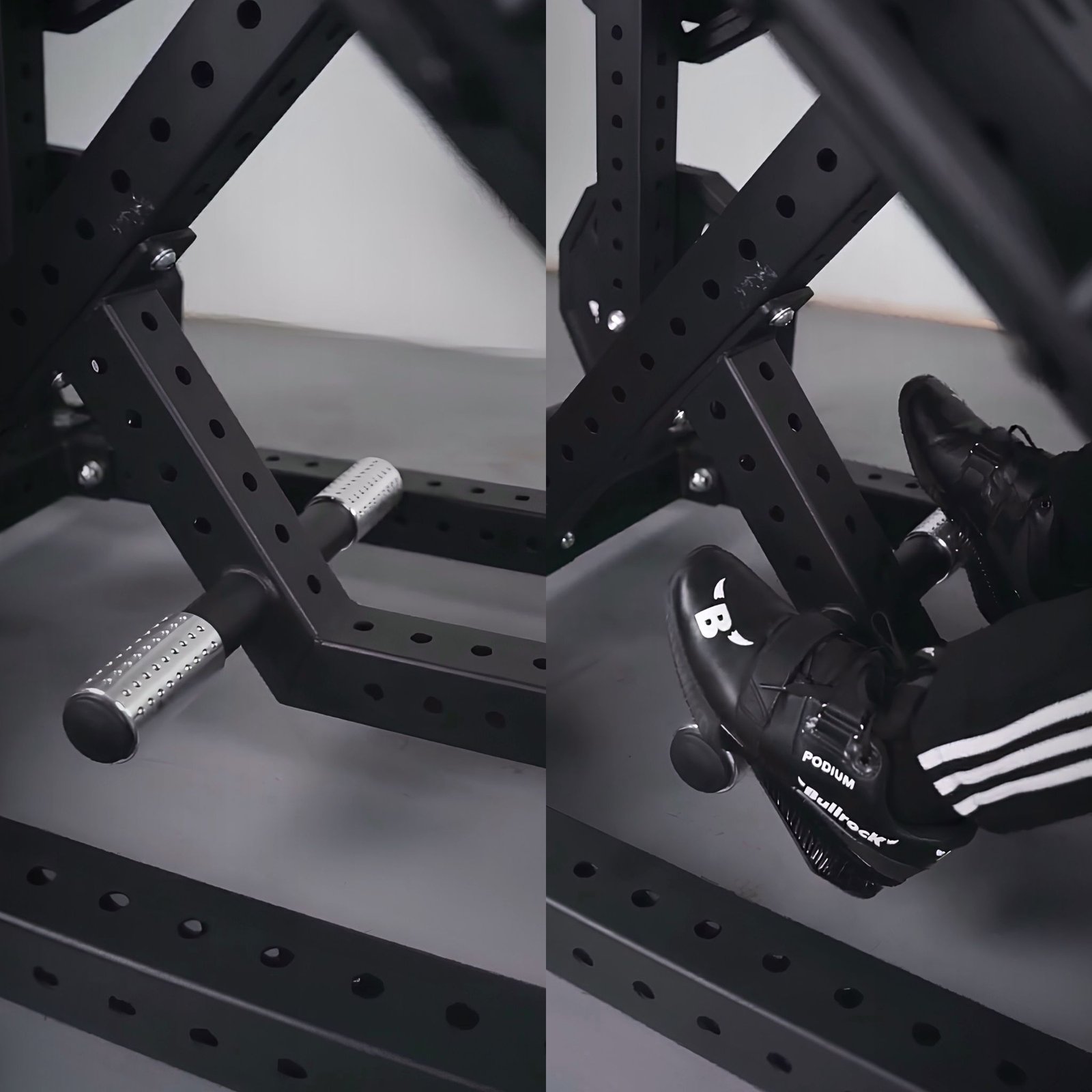

14. Entry Handles and Aluminium Footrests

Upper handles and textured aluminium footrests provide secure support while entering or exiting the machine, especially during heavily loaded sessions.

15. Built for Serious Strength Training

With 42 kg starting resistance, the machine is best suited for intermediate and advanced users in strength-focused training environments.

Training Applications:

• The Gorilla Iso Linear Leg Press supports:
• Bilateral leg pressing
• Independent single-leg pressing
• Narrow-stance pressing
• Wide-stance pressing
• High-foot pressing
• Low-foot pressing
• Left-to-right strength-balance training
• Calf raises

Foot placement can be adjusted to change the muscular emphasis across the quadriceps, glutes, hamstrings and adductors.
