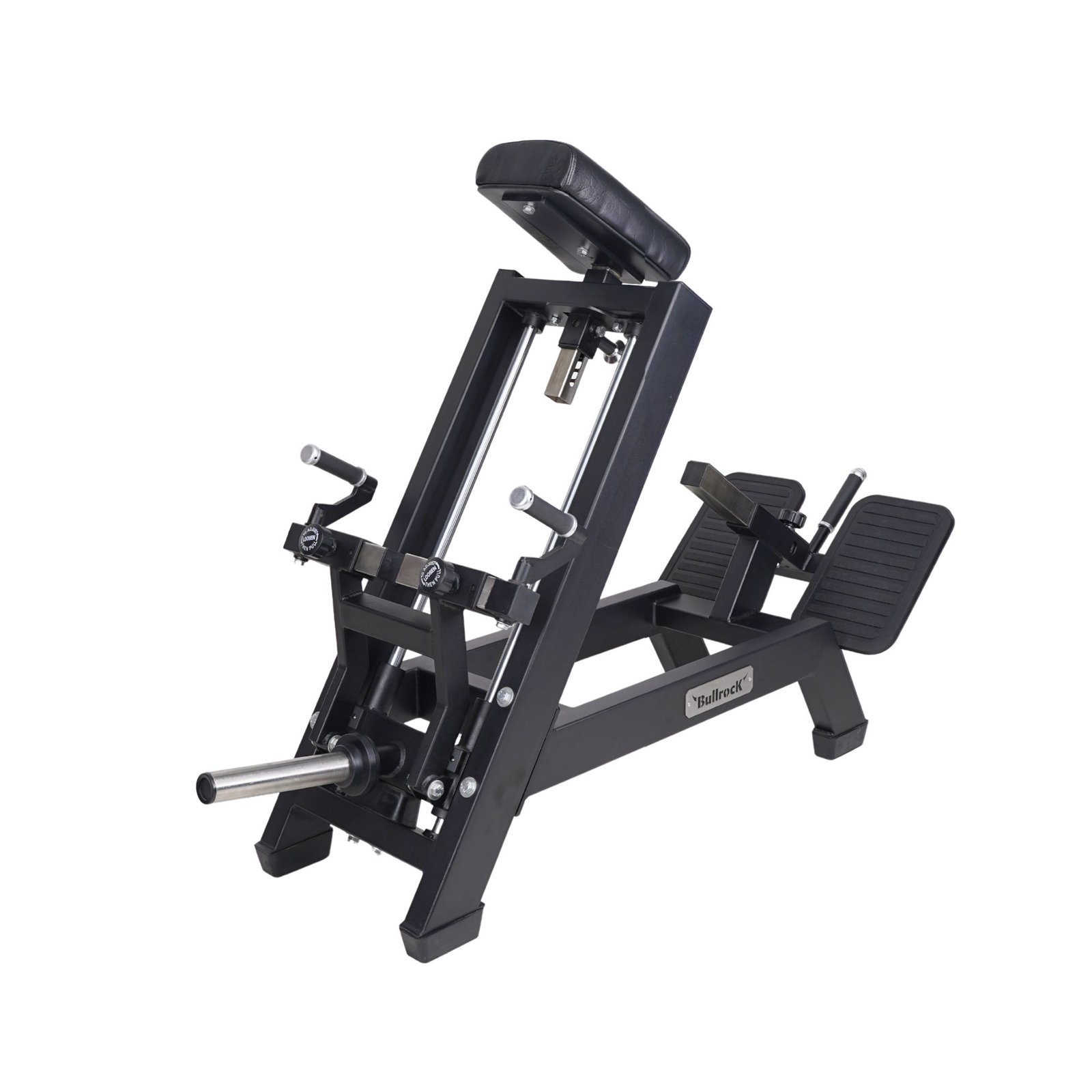

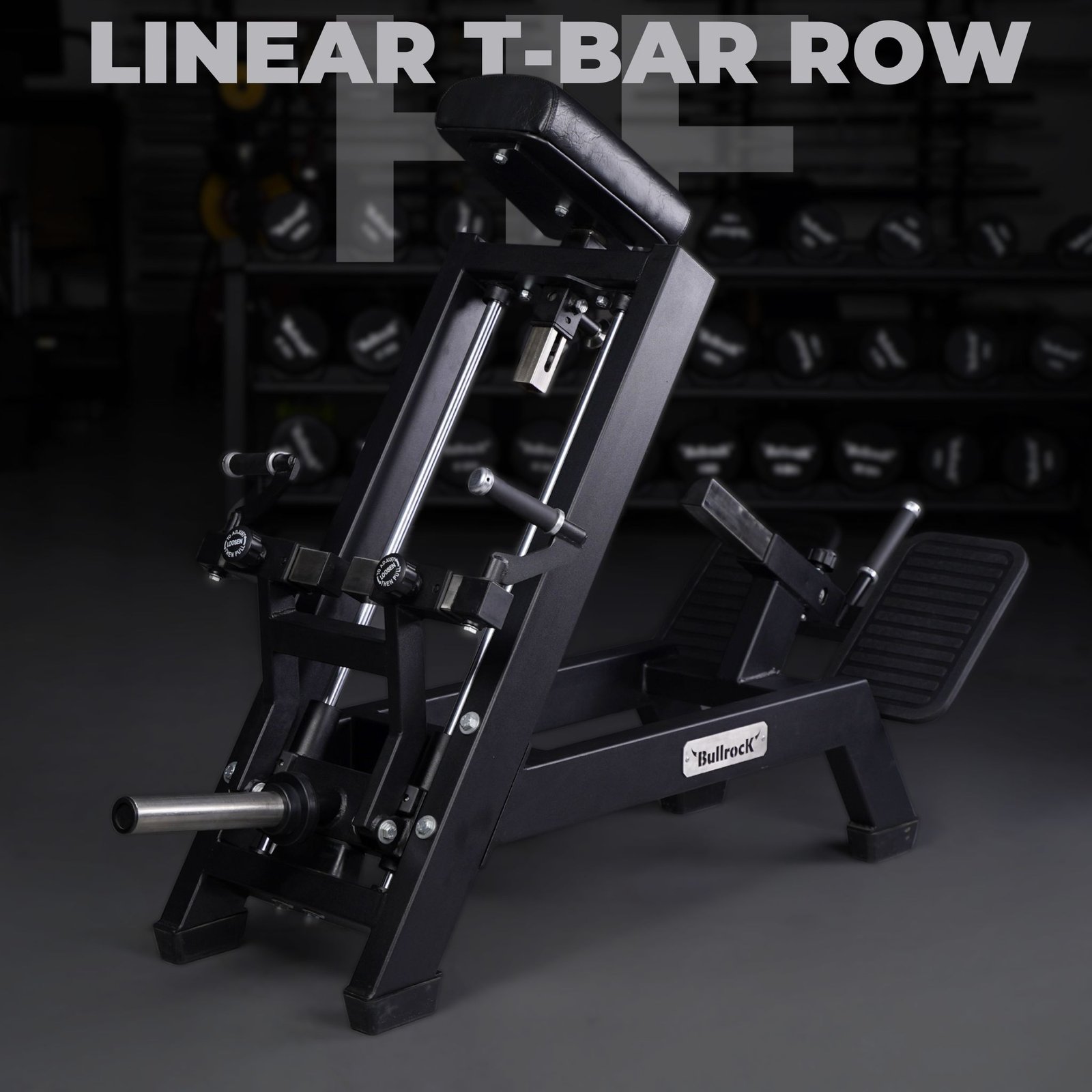

Linear T-Bar Row Machine – HF (Plate Loaded)

Original price was: ₹96,347.Current price is: ₹57,808. 18% Ex GST Price: 48,990

SKU: C7119

Price exclusive of Shipping

Consult with Expert

Why This Machine?

Don’t turn your back on its compact frame, it is built to make yours stronger. Compact in size. Serious in performance.

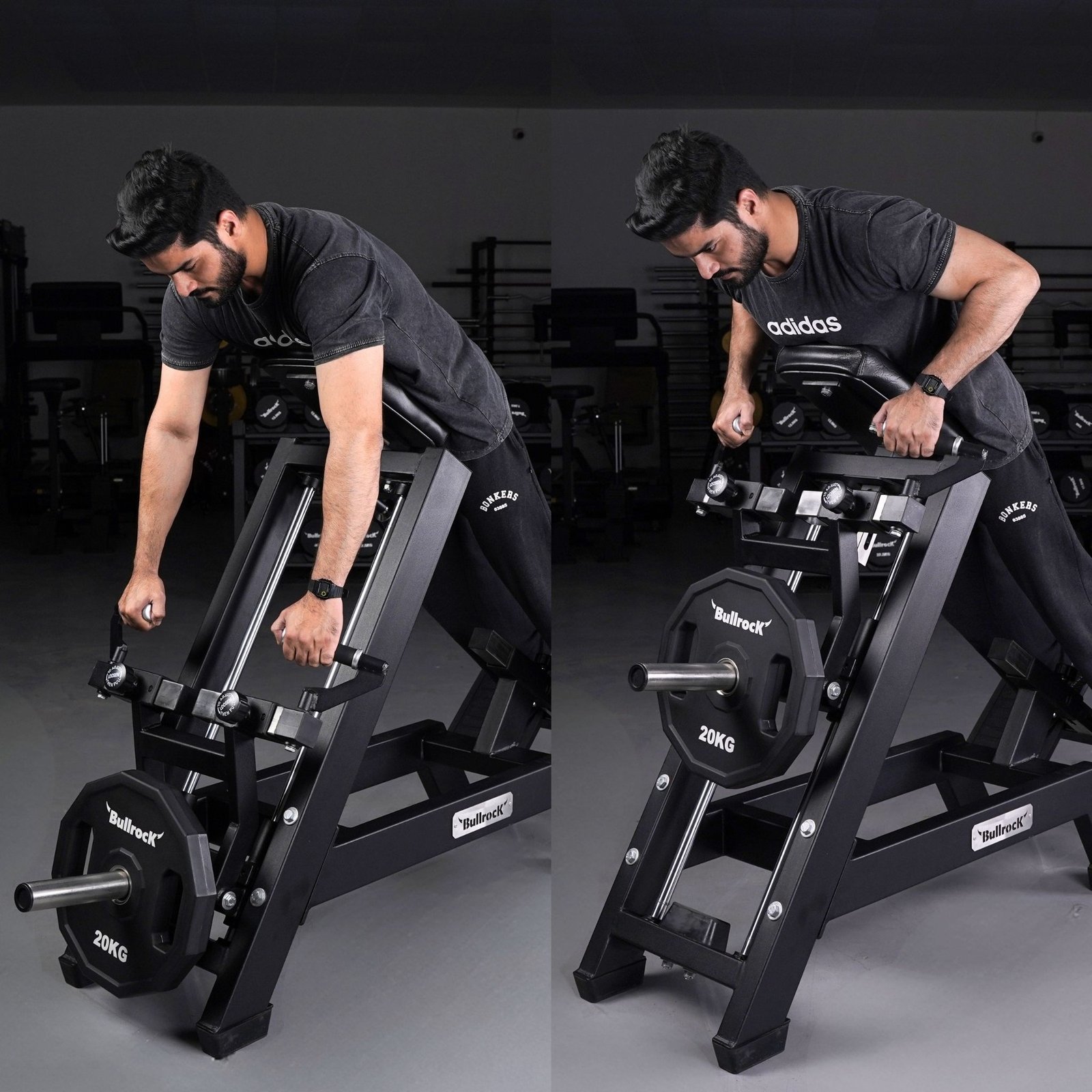

The Linear T-Bar Row Machine – HF (Plate Loaded) is built for gyms that want a serious back-training station without wasting floor space. It delivers the natural feel of heavy plate-loaded rowing with the control of a smooth guided linear path.

The chest-supported position keeps the body stable and reduces unnecessary lower-back involvement, helping users pull with better control and target the lats more effectively.

Its fixed linear motion gives a clean, consistent rowing path. Narrower handle settings help drive lower-lat engagement, while wider settings allow more mid-back focus.

This is a compact machine, but not a compromise machine. With 3 mm heavy-duty frame construction, hard chrome guide rods, linear bearings, adjustable seat, adjustable footplate, and adjustable handle width, it is made for dependable commercial use.

Best for gyms that need a space-saving, smooth, plate-loaded T-bar row machine with strong lat isolation and a premium training feel.

Restocking Soon

Description

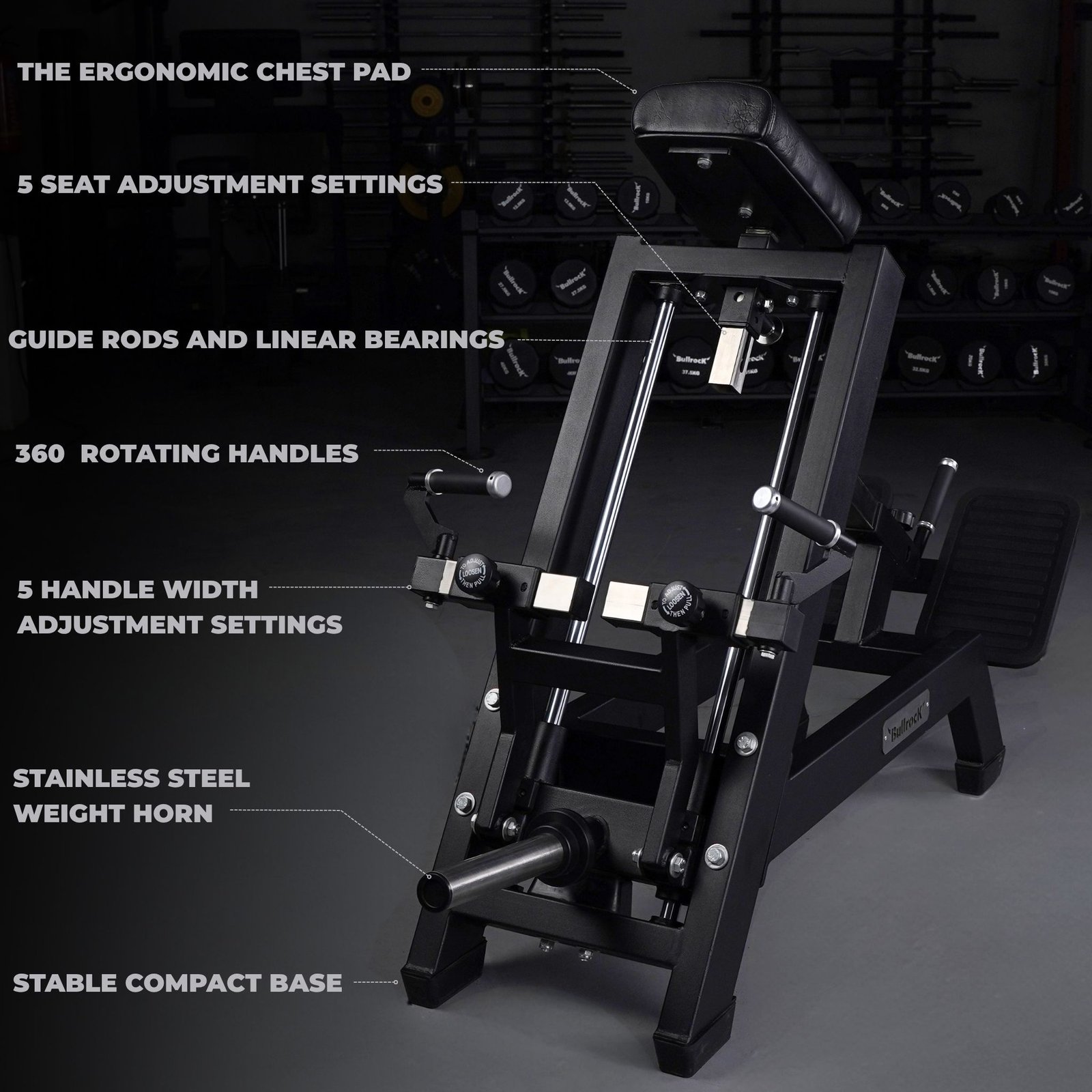

Key Features:

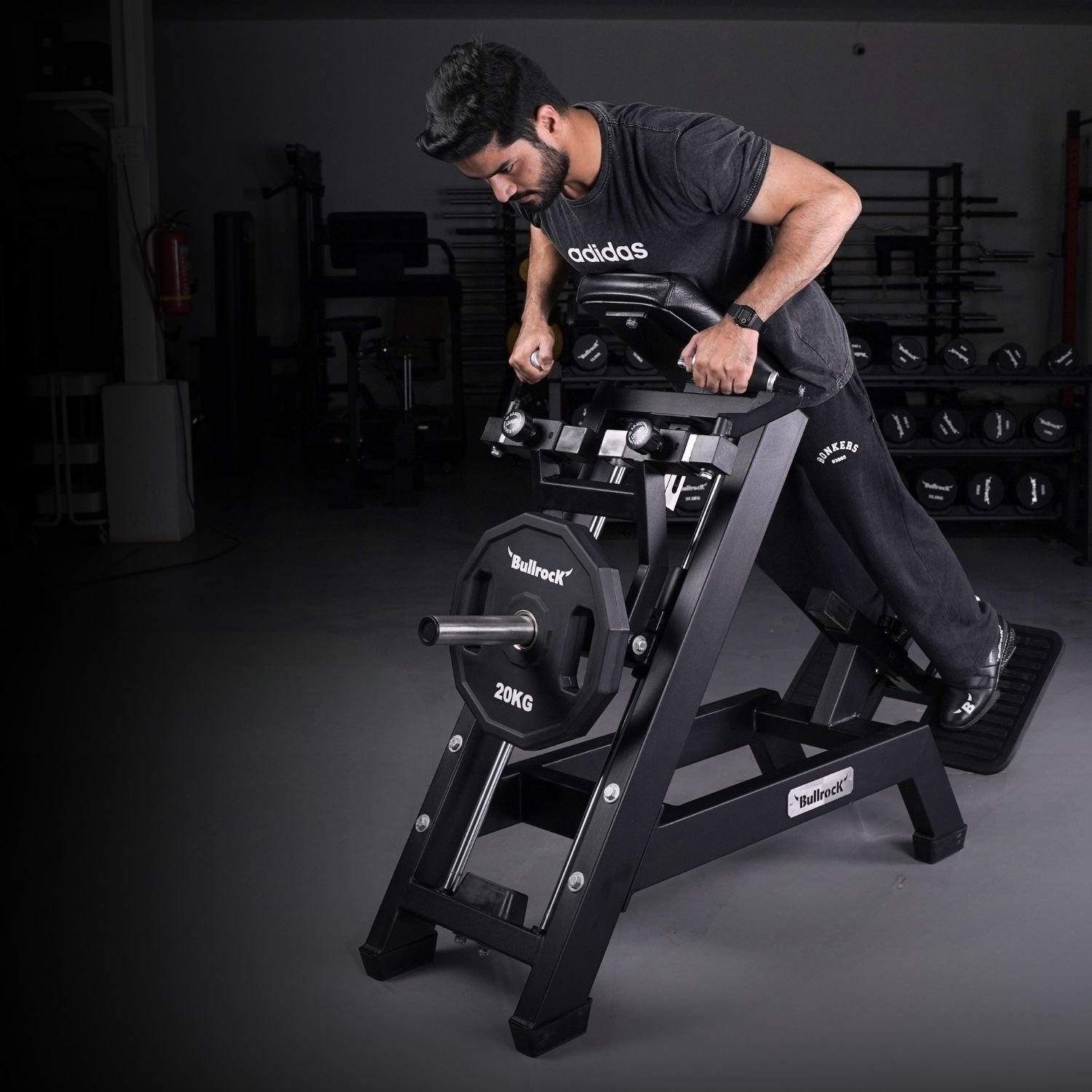

Smooth Linear Rowing Motion

Built with hardened guide rods and linear bearings to deliver a smooth, guided, and controlled rowing experience. The fixed path helps users maintain better control through the full range of movement.

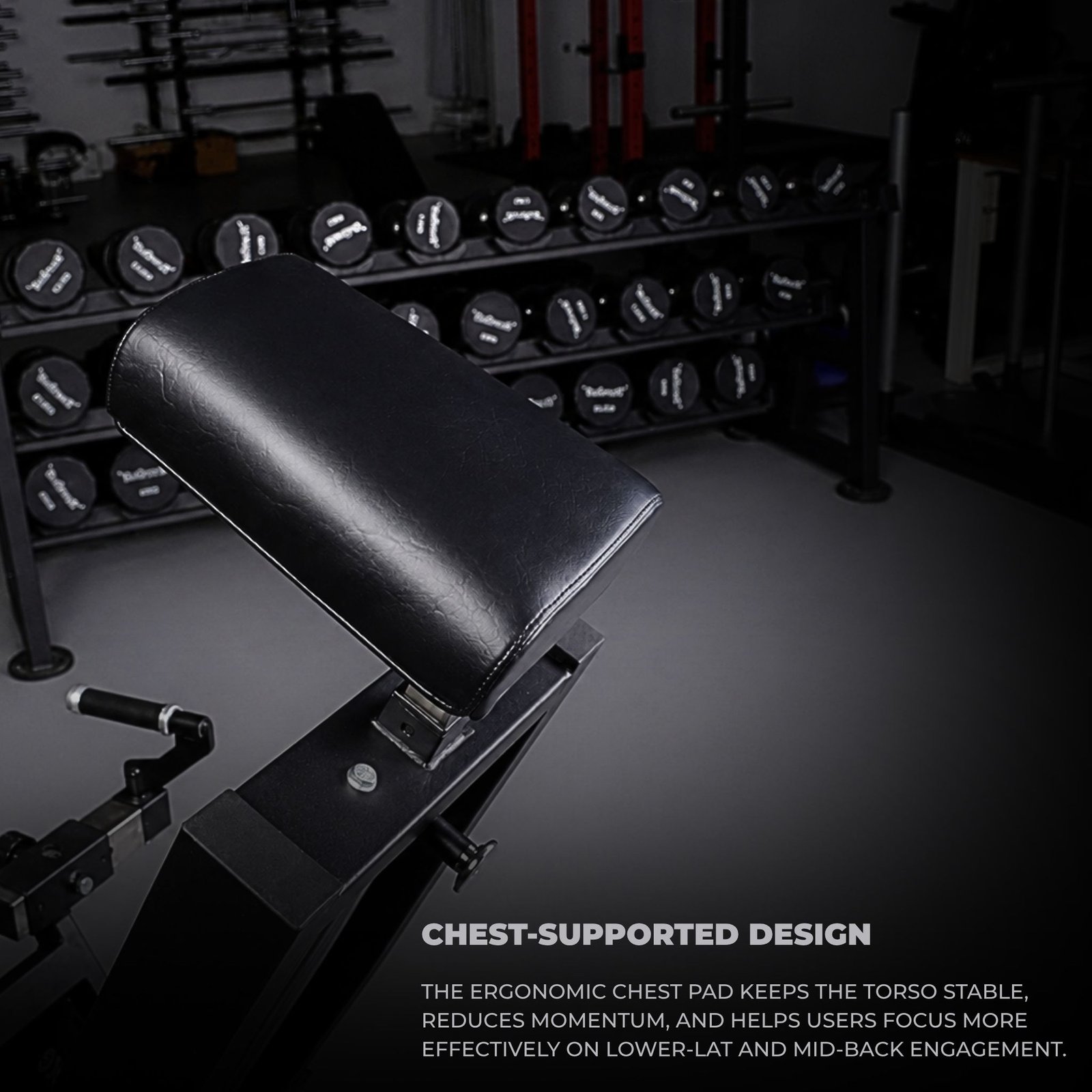

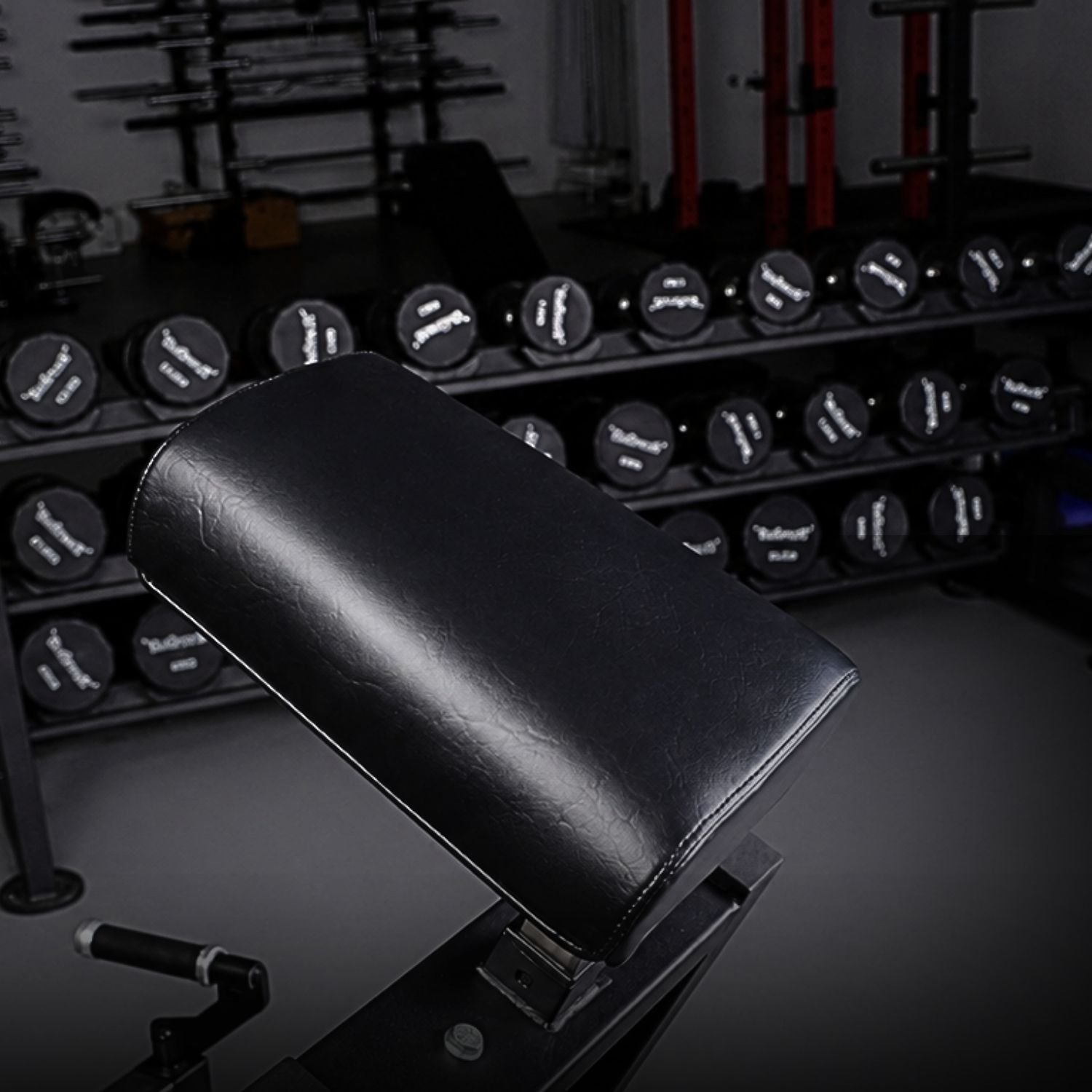

Chest-Supported Design

The ergonomic chest pad keeps the torso stable, reduces momentum, and helps users focus more effectively on lower-lat and mid-back engagement.

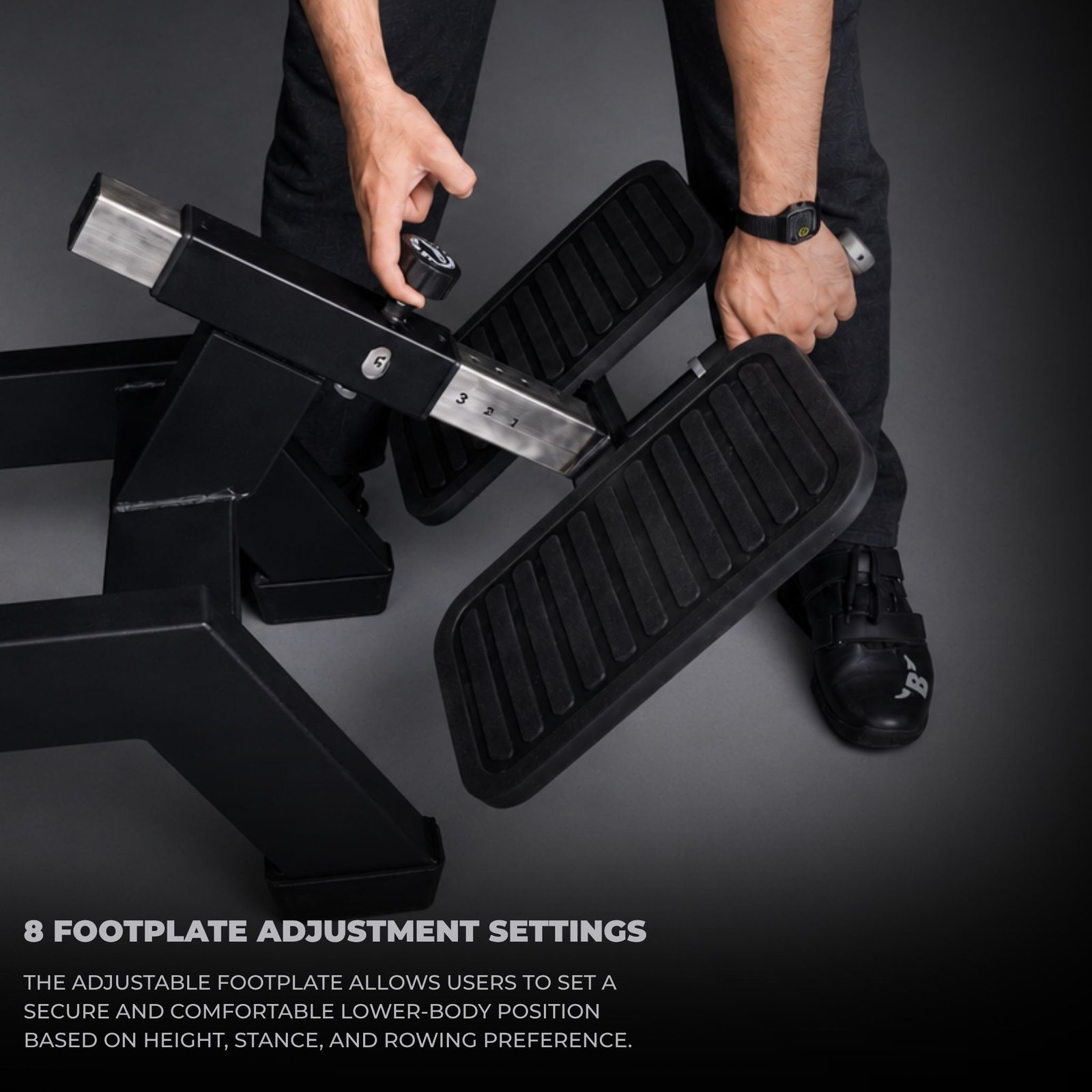

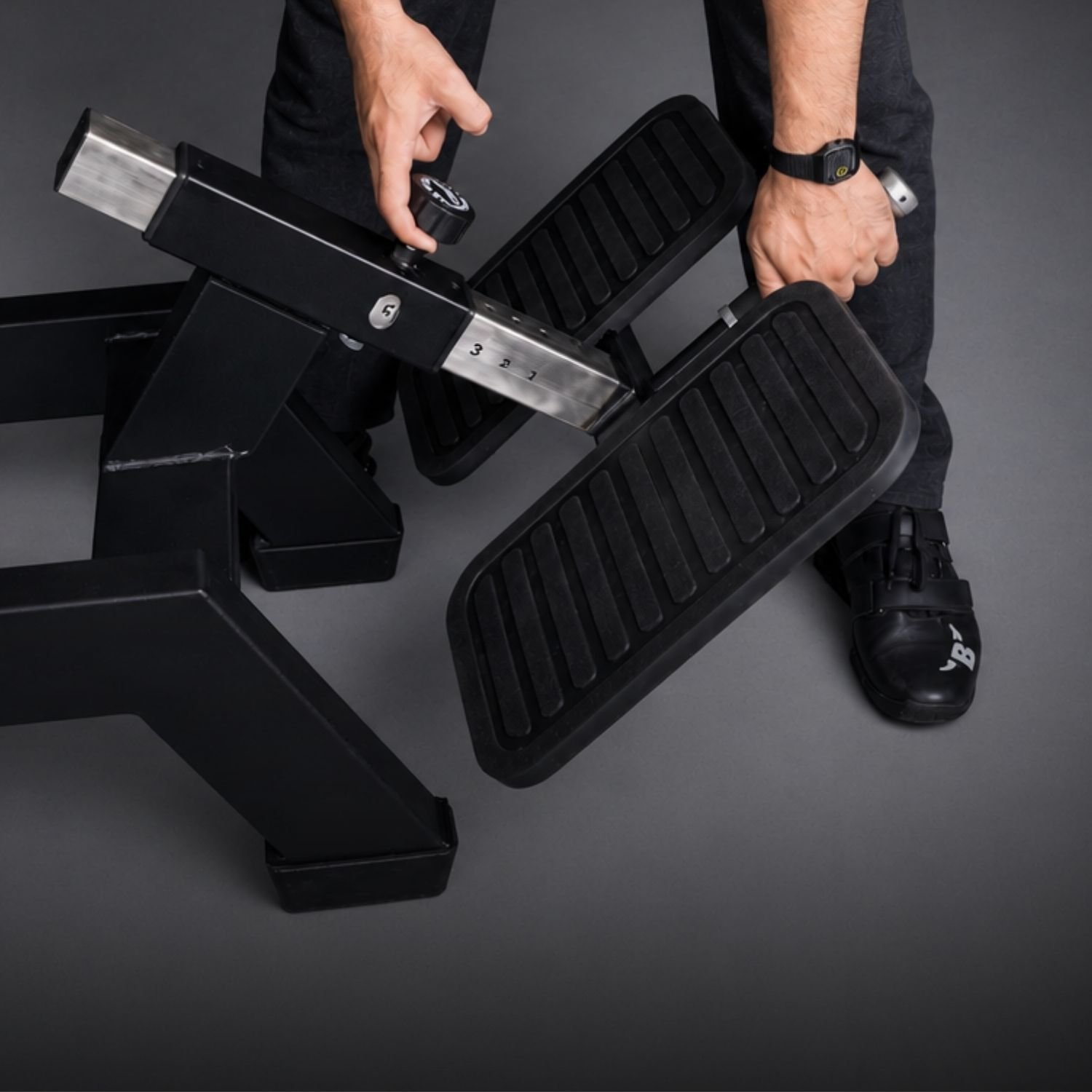

8 Footplate Adjustment Settings

The adjustable footplate allows users to set a secure and comfortable lower-body position based on height, stance, and rowing preference.

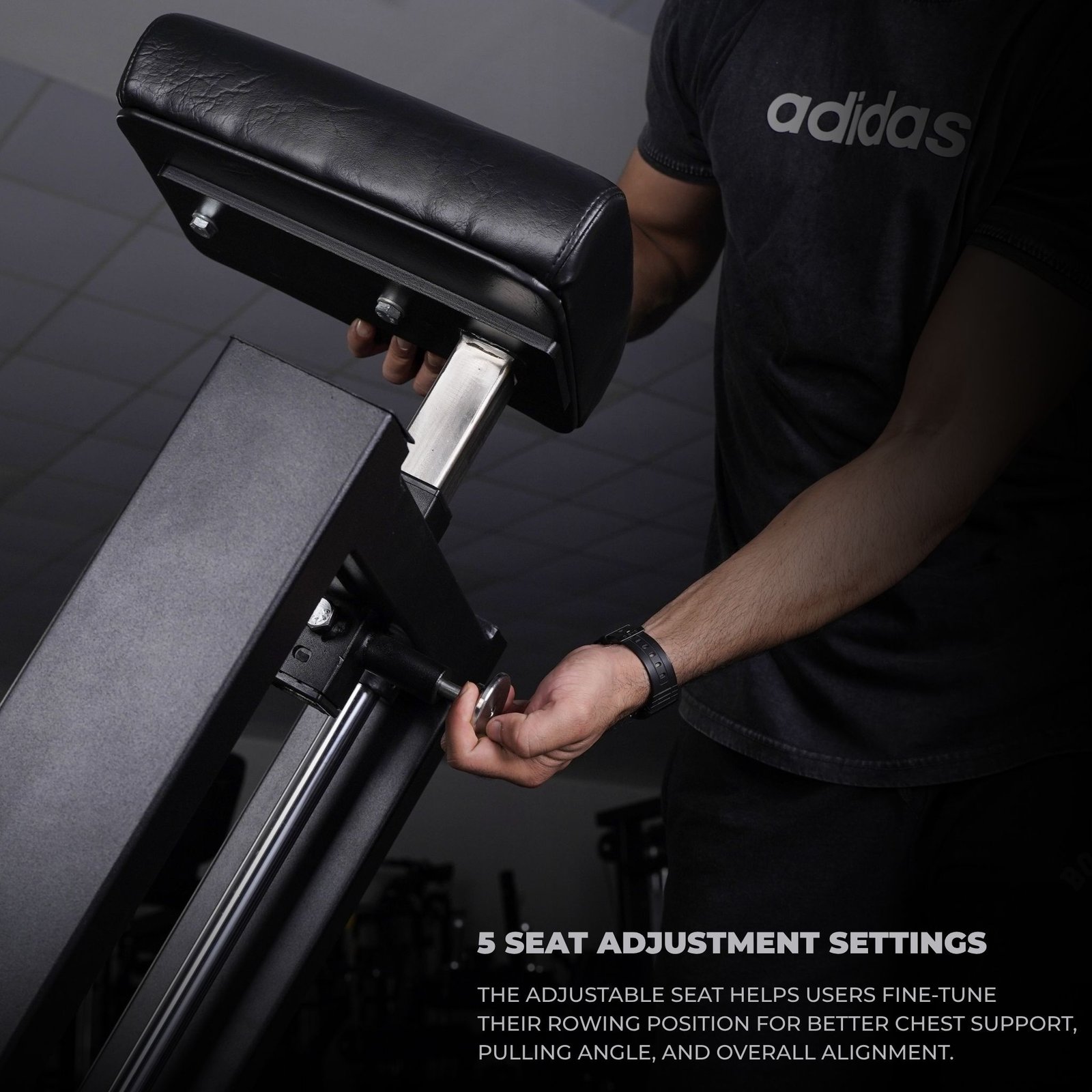

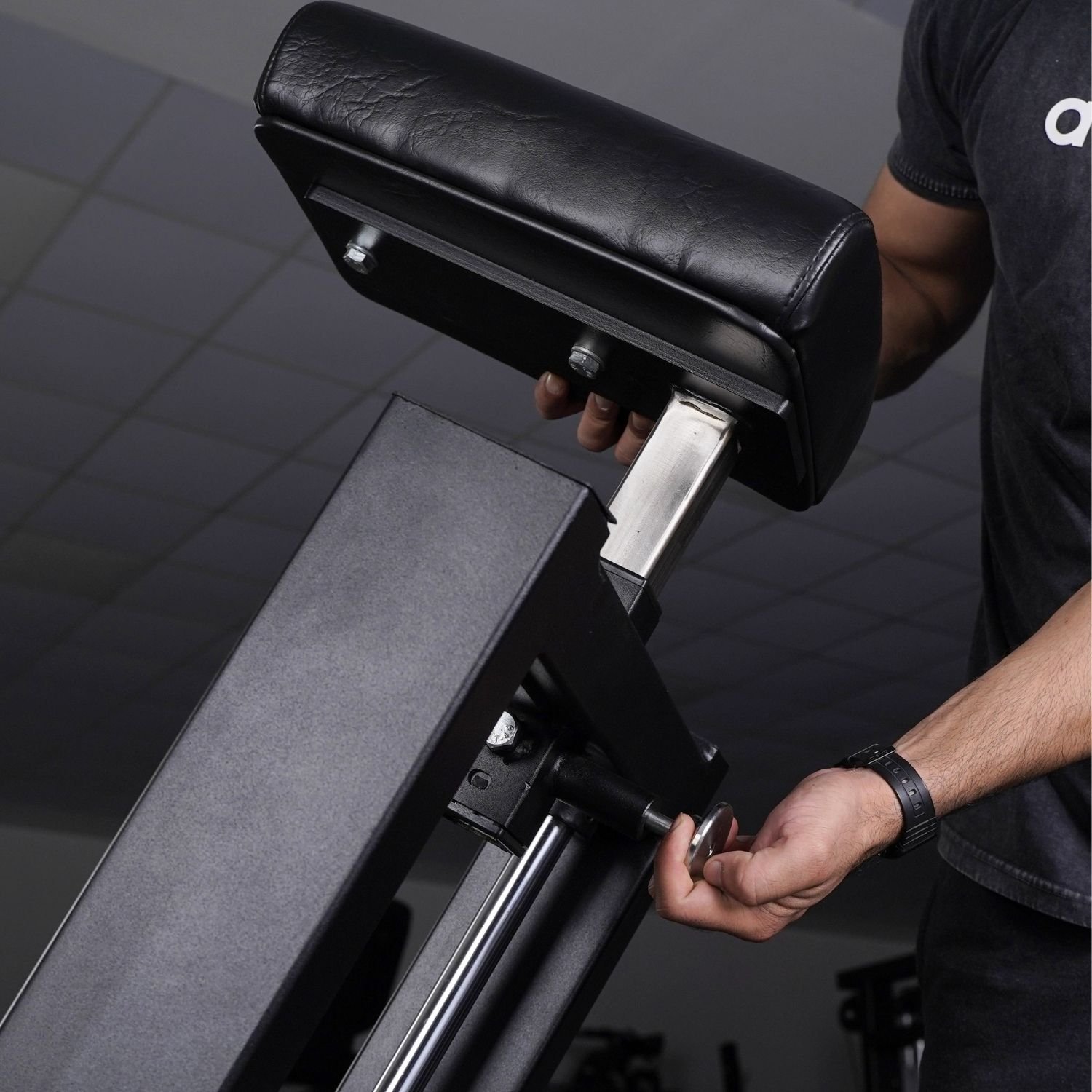

5 Seat Adjustment Settings

The adjustable seat helps users fine-tune their rowing position for better chest support, pulling angle, and overall alignment.

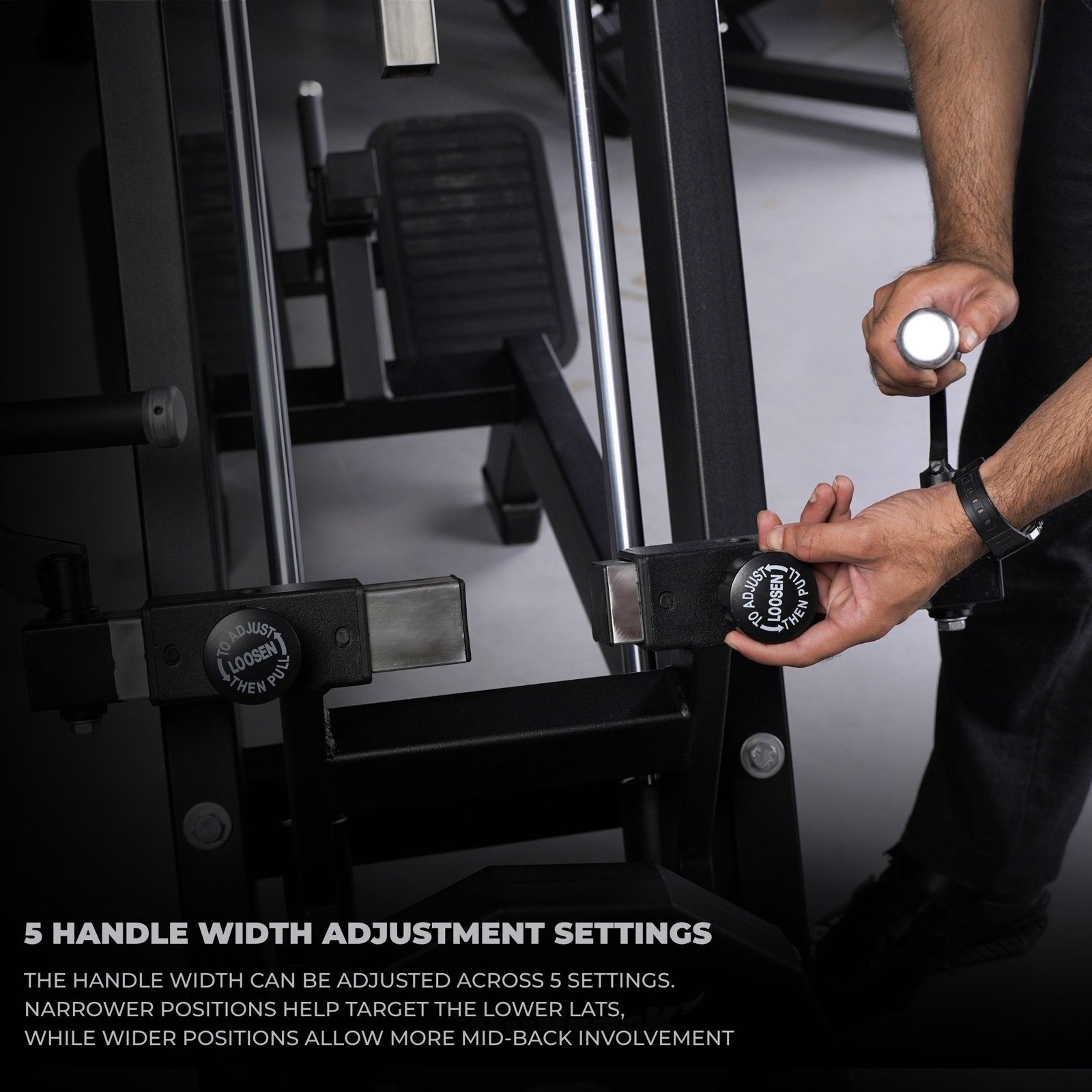

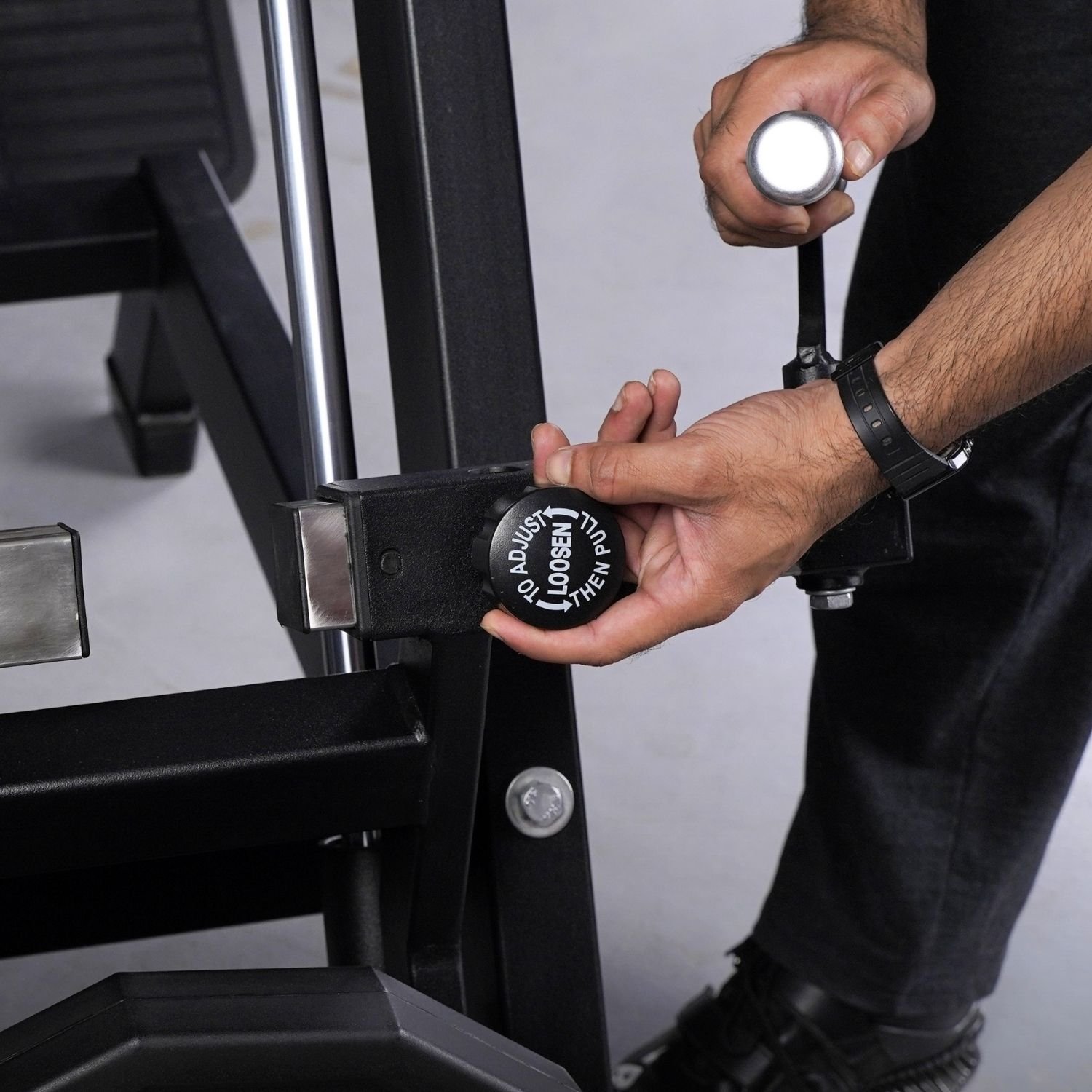

5 Handle Width Adjustment Settings

The handle width can be adjusted across 5 settings. Narrower positions help target the lower lats, while wider positions allow more mid-back involvement.

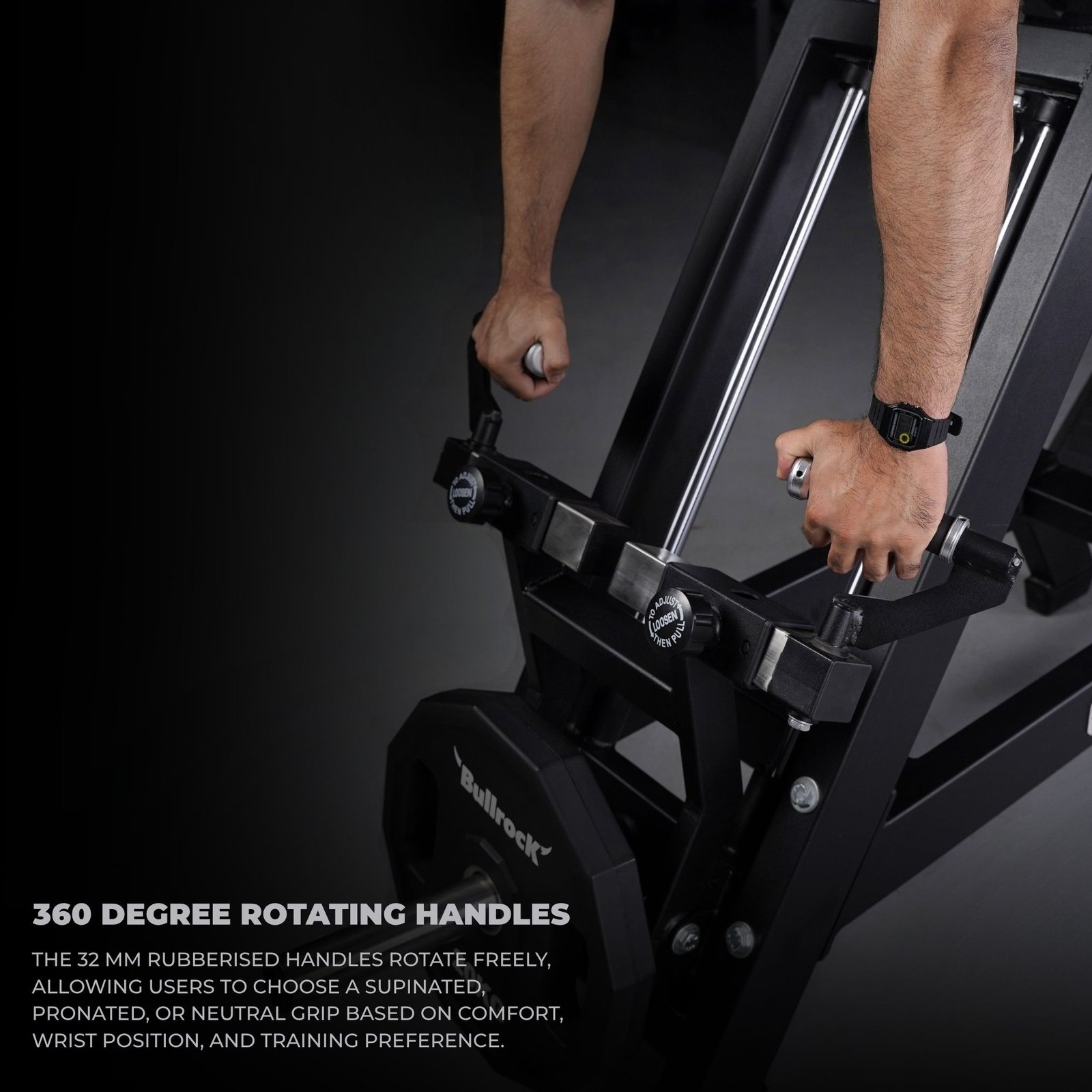

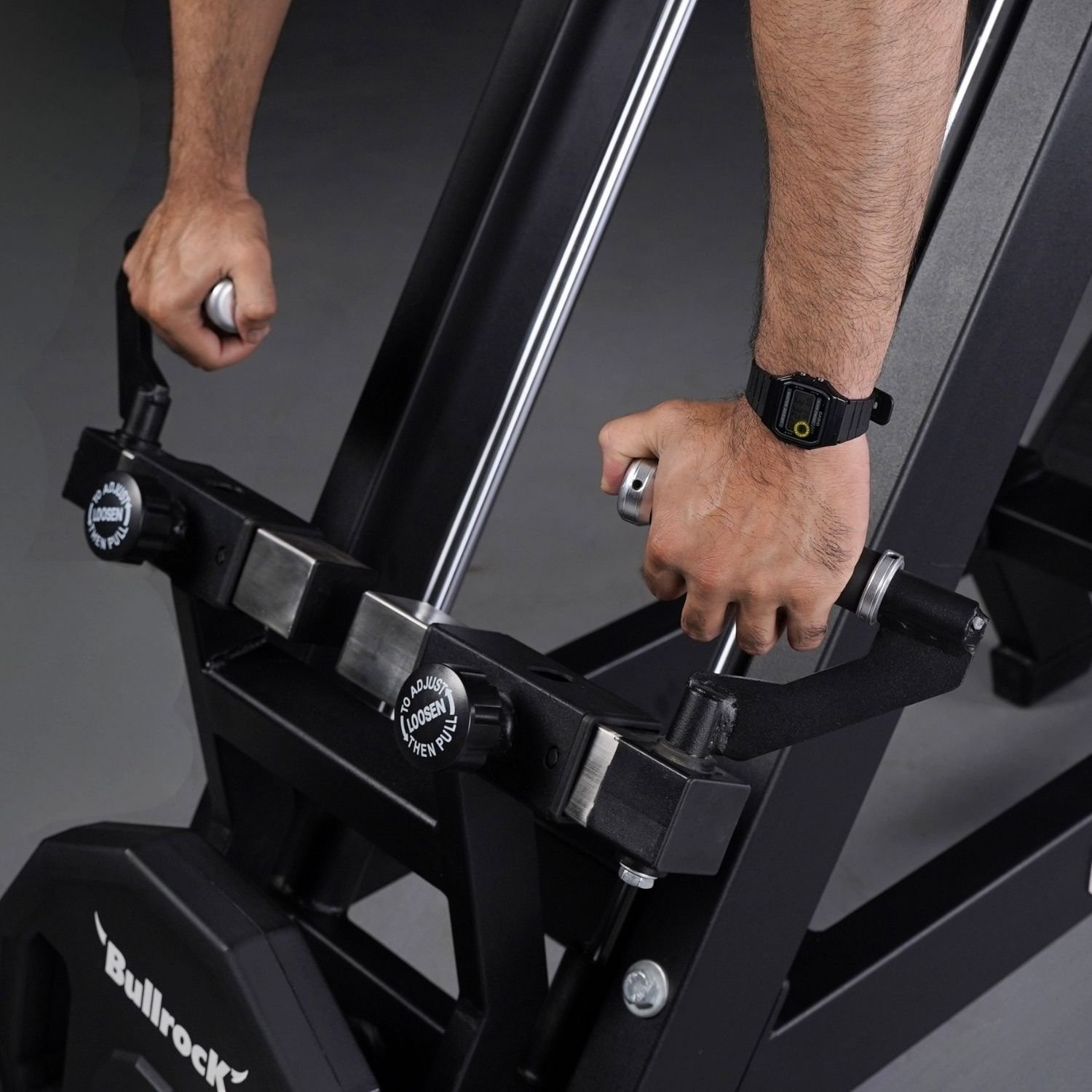

360 Degree Rotating Handles

The 32 mm rubberised handles rotate freely, allowing users to choose a supinated, pronated, or neutral grip based on comfort, wrist position, and training preference.

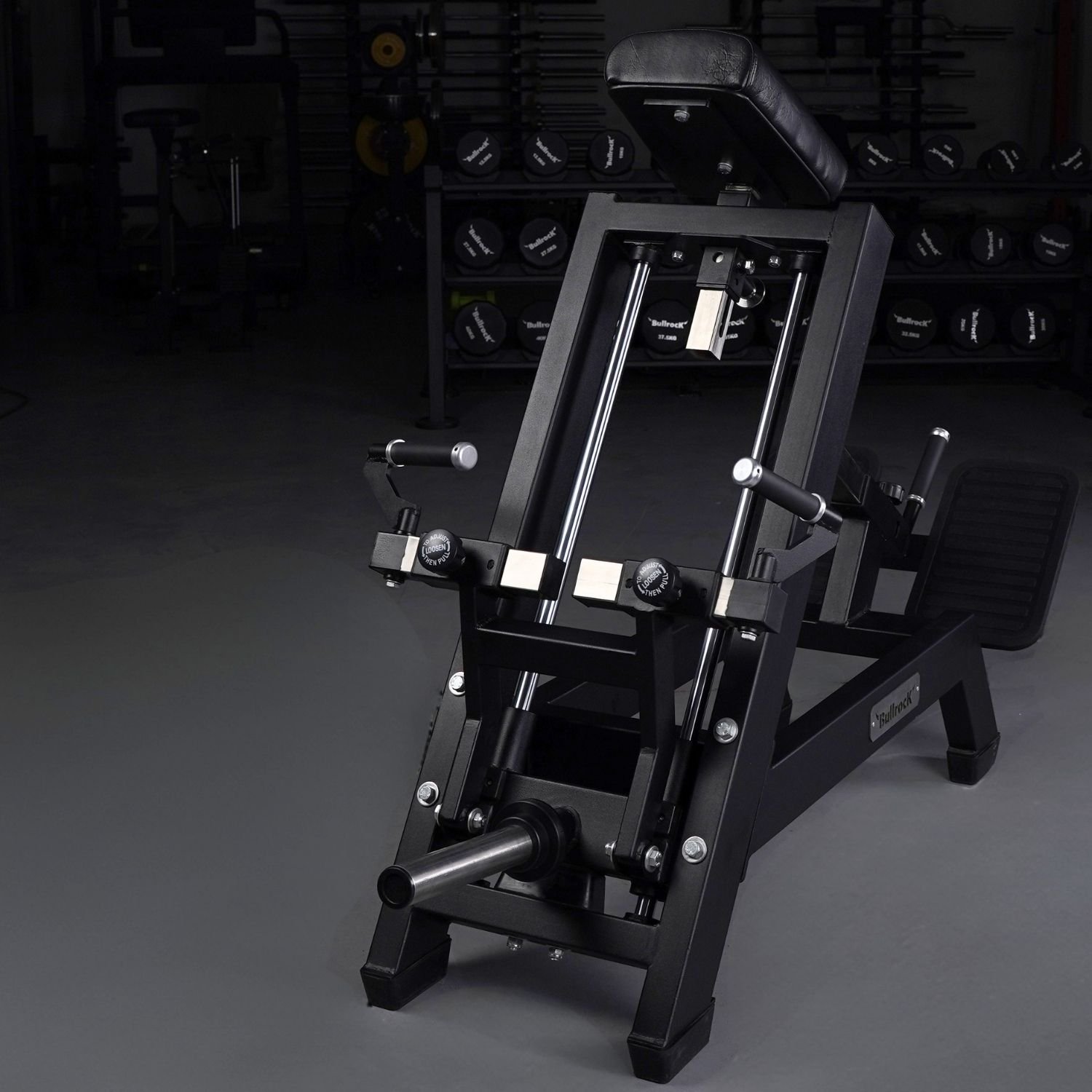

Stable Compact Base

The machine rests on 4 solid rubber studs, providing strong stability even within a compact footprint.

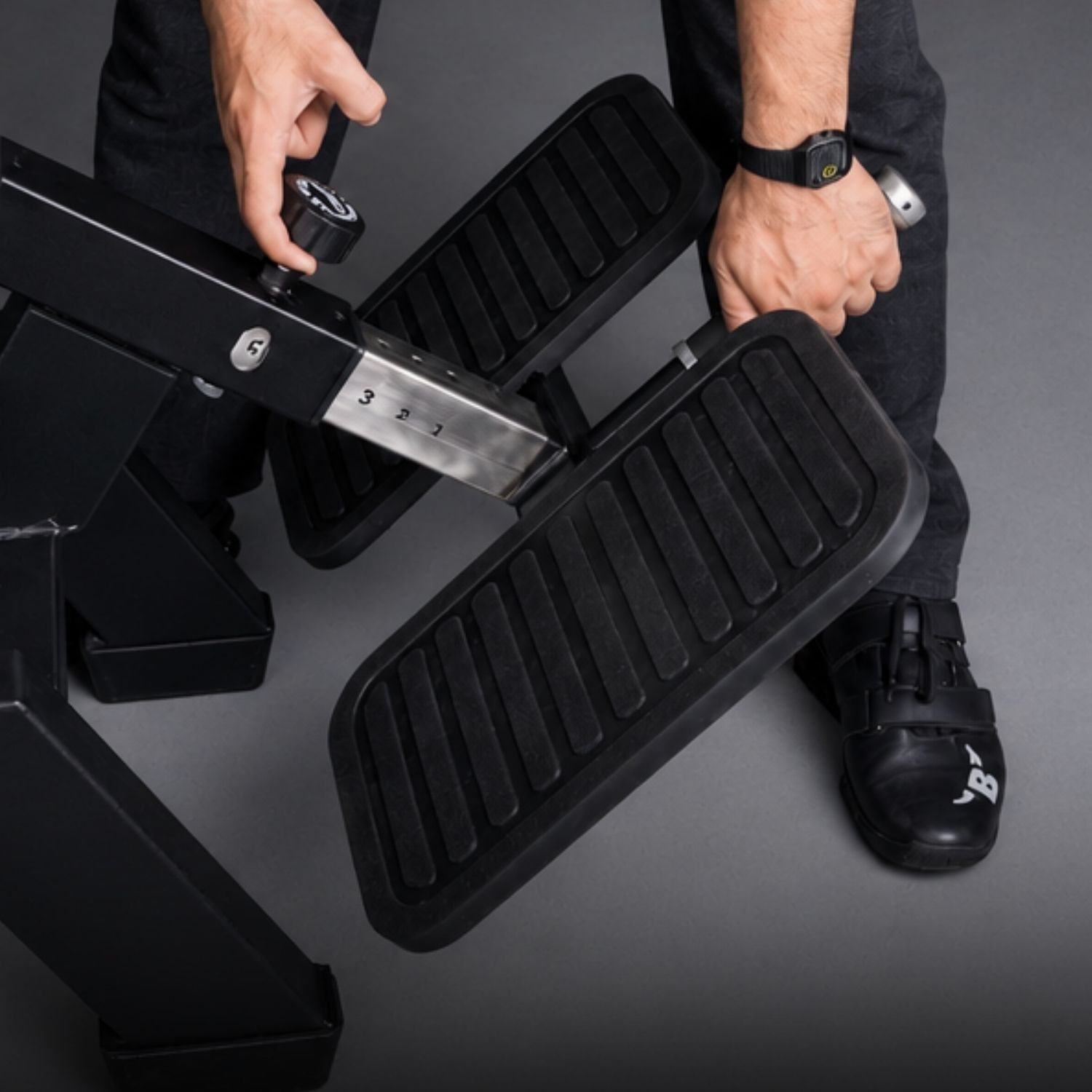

High-Grip Footplates

The footplates feature textured rubberised mounting for anti-slip grip and confident support during rowing.

Specifications:

Product NameLinear T-Bar Row Machine – Plate Loaded, HF Series
Short NameLinear T Bar Row Machine PL HF
Resistance TypePlate Loaded
Plate CompatibilityOlympic plates
Maximum Load Capacity200 kg
Net Weight88 kg
Base Footprint, Rubber Stud to Rubber Stud1250 x 440 x 1350 mm
Overall Working Footprint, Including Weight Horn and Grip Handle1910 x 440 x 1350 mm
Footplate Adjustment8 settings
Seat Adjustment5 settings
Handle Width Adjustment5 settings
Plate Loading HornStainless steel, 255 mm / 10 inch, inclined for easy loading and unloading
Guide Rod25 mm hardened hard chrome solid guide rod
Movement SystemLinear bearings
Handle Diameter32 mm
Handle TypeRubberised, 360 degree rotating
Handle End CapsAluminium
Main Frame100 x 50 mm, 11 gauge / 3 mm steel
Adjustment SectionsLaser-cut numbered 50 x 50 mm, 12 gauge / 2.5 mm stainless steel sections
Base Support4 solid rubber studs
Footplate SurfaceTextured rubberised anti-slip mounting
Chest Pad Length360 mm
Chest Pad Width at Top210 mm
Chest Pad Width at Bottom255 mm
Chest Pad Thickness90 mm
Chest Pad Width at Bottom255 mm
